Product
Pulsotronic
08317320465
KJ4-M12MN50-NA-V2
Request a Quote

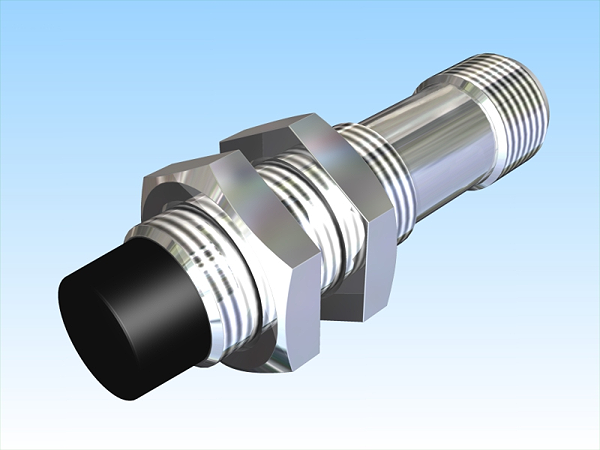

Image copyright: Pulsotronic
Pulsotronic 08317320465
KJ4-M12MN50-NA-V2
Inductive sensor NAMUR
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Name: | KJ4-M12MN50-NA-V2 |
| Order number: | 08317320465 |
| Matchcode: | 9932-0465 |
| Switching distance: | 4 mm |
| Mounting: | non shielded |
| Signal Type: | Namur |
| Connection: | connector M12 |
| Connection diagramm: | |
| Dimension (in mm): | fine-pitch thread M12 x 50 |
| Operating voltage: | 6 - 12 V DC |
| Max. ripple: | ≤ 5 % |
| No load current: | ≤ 3,5 mA |
| Switching frequency: | 1000 Hz |
| Operating temperature: | -25 ° C to 60 ° C |
| Temperature drift: | ≤ 10 % |
| Repeat accuracy: | ≤ 10 % |
| Time delay: | 100 ms |
| Short-circuit proof: | yes |
| Overload protection: | yes |
| Reverse voltage protection: | yes |
| Protection category: | IP67 |
| EMC-level: | DIN EN 60947-5-6:2000-12 |
| Housing material: | Brass, nickel plated |
| Material active face: | PCB |
| Utilisation category: | DC 13 |
| Contact material: | CuSn |
| Contact surface material: | NiAu |
| Contact holder: | PA 6 |
| Nominal operating voltage: | 8,2 V DC |
| Termination: | Connector M12 4pin |
| Load Current OFF: | ca. 0,5 mA |
| Load Current ON: | ca. 3,5 mA |
| FIT / MTTF acc. to SIEMENS 29500: | 17,38 / 6568y |
| Errors and omissions exceptet: |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
