08313550130
KJ1-Q5MB25-DNS
Inductive sensor DC
Name: | KJ1-Q5MB25-DNS-X0303 |
Order number: | 08313550130 |
Switching distance: | 1 mm |
Mounting: | shielded |
Switch type: | N.O. |
Signal Type: | DC NPN |
Connection: | Cable |
Connection diagramm: | |

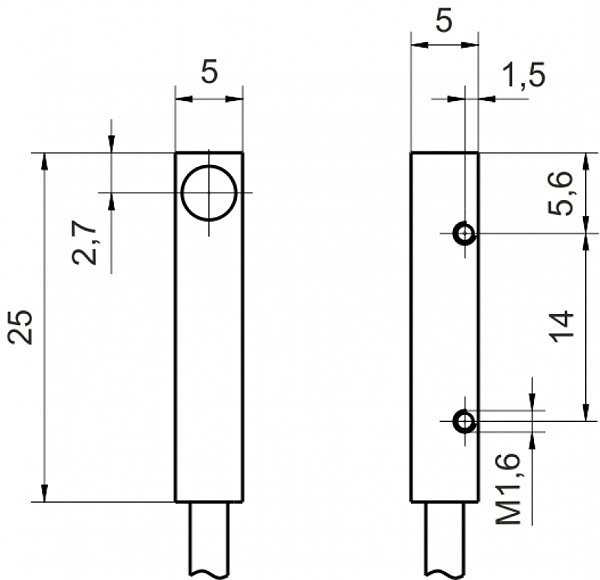

Dimension (in mm): | Q 5 x 5 x 25 |
Operating voltage: | 10 - 30 VDC |
Max. ripple: | ≤ 10 % |
Voltage drop: | 2,4 V |
Max. load current: | 200 mA |
No load current: | ≤ 10 mA |
Leakage current: | ≤ 10 µA |
Switching frequency: | 2000 Hz |
Switching hysterese: | ≤ 15 % |
Operating temperature: | -25 ° C to 70 ° C |
Temperature drift: | ≤ 10 % |
Repeat accuracy: | ≤ 5 % |
Swiching state: | LED |
Time delay: | 100 ms |
Short-circuit proof: | yes |
Overload protection: | yes |
Reverse voltage protection: | yes |
Protection category: | IP67 |
EMC-level: | DIN EN 60947-5-2:2008 |
Housing material: | Brass, nickel plated |
Material active face: | PBT |
Cable length: | 2 m |
Utilisation category: | DC 13 |
Cable material: | PUR LIY11Y schwarz |
Nominal operating voltage: | 24 V DC |
Cable cross: | 3x0,14 mm² |
Errors and omissions exceptet: |
ECCN: | |
País de origen: | |
EAN: | |
Peso: | 0,00 kg |
Longitud: | 0,00 m |
Anchura: | 0,00 m |
Altura: | 0,00 m |
