Product
Rechner Sensors
111000
IAS-10-A24-S-M30-PVC/MS-Z02-0
Request a Quote

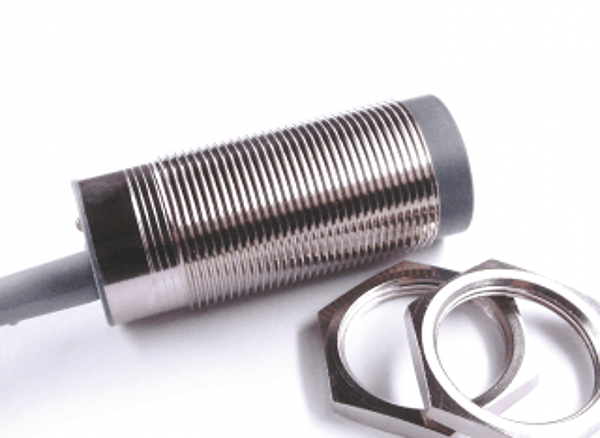

Image copyright: Rechner Sensors
Rechner Sensors 111000
IAS-10-A24-S-M30-PVC/MS-Z02-0
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Thread / Process connection: | M 30 x 1,5 |
| Housing material active surface: | PVC |
| Housing material: | Messing |
| Housing material lid: | PA |
| Electrical version: | 3-Leiter DC |
| Operating current (Ie): | 0…250 mA |
| Voltage drop max. (Ud): | ≤ 2,5 V |
| Permitted residual ripple max.: | 10% |
| Noload current (Io): | Typ. 15 mA |
| Frequency of operating cycles max.: | 1 kHz |
| LEDdisplay: | Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 |
| Norm: | EN 60947-5-2 |
| Sensing dinstance Sn: | 15 mm |
| Operating voltage: | 10…35 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +70 °C |
| Installation: | Nichtbündig |
| Output function: | Schließer |
| Output signal: | PNP |
| Cable length: | 2 m |
| Connection: | PVC-Kabel, 3 x 0,75 mm² |
| CE: | JA |
| RoHS: | JA |
| MTTF: | 1218 Jahre |
| WHG certification: | Auf Anfrage |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
