58035255

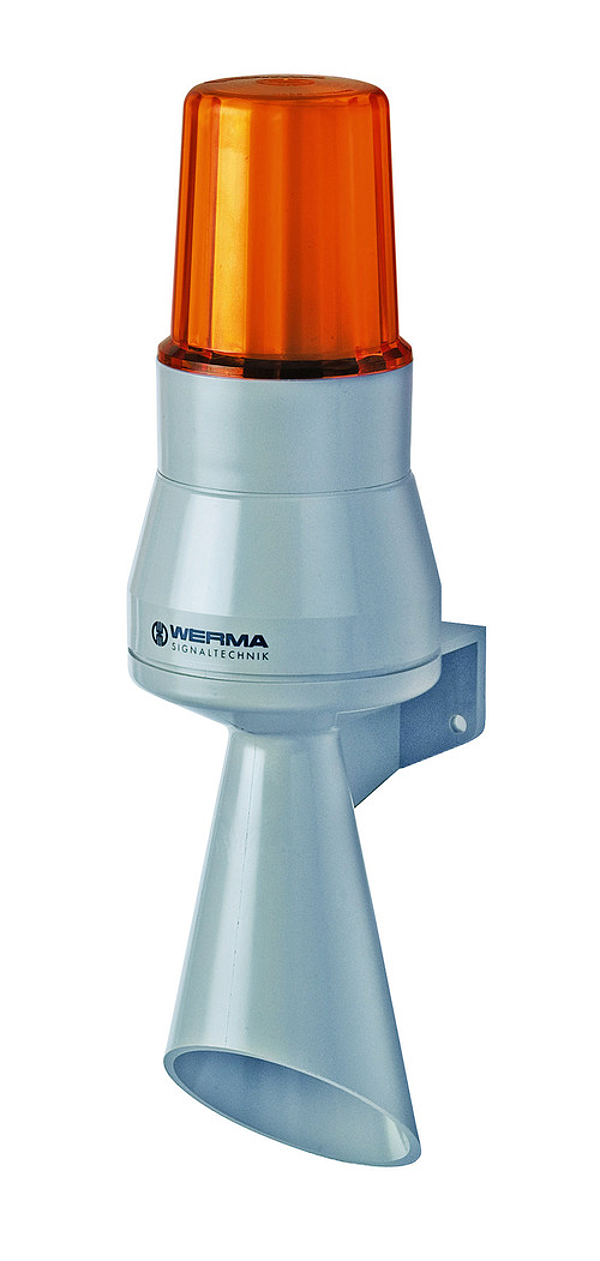

Horn/Light WM Contin. tone 24VDC YE
Light and sound can be separately triggered for two-stage signalling. Integrated bracket for simple wall mounting without additional, accessories
Length: | 77 mm |
Width: | 70 mm |
Height: | 251 mm |
Diameter: | 70 mm |
Materials: | PC PC/ABS |
Dome colour: | Yellow |
Housing colour: | Grey |
Protection category: | IP33 |
Connection: | Screw terminals |
cross-sectional area maximum: | 2,50mm² / 14AWG |
Cable entry: | Through hole |
Cable entry maximum: | d = 9 mm |
Type of fixing: | Wall mounting |
Working temperature minimum: | -20°C |
Working temperature maximum: | +50°C |
Weight with packaging: | 310 g |
Product weight: | 260 g |
Operating voltage: | 24V |
Operating voltage type: | DC |
Operating voltage tolerance: | +/- 10% |
Rated operational voltage: | 24 VDC |
Rated operational current: | 320 mA |
Rated inrush current: | <5A |
Protection class: | Protection class 3 |
Pollution degree: | 2 |
Request to external PSU: | SELV/PELV |
Light colour: | Yellow |
Service life optical: | Lamp: depends on bulb |
Volume/dB(max) at 1m distance: | 92,0 dB (A) |
Acoustic signal image: | Continuous tone |
Audio frequency: | 600 Hz |
Acoustic service life: | 300 h minimum |
