Werma 44111068

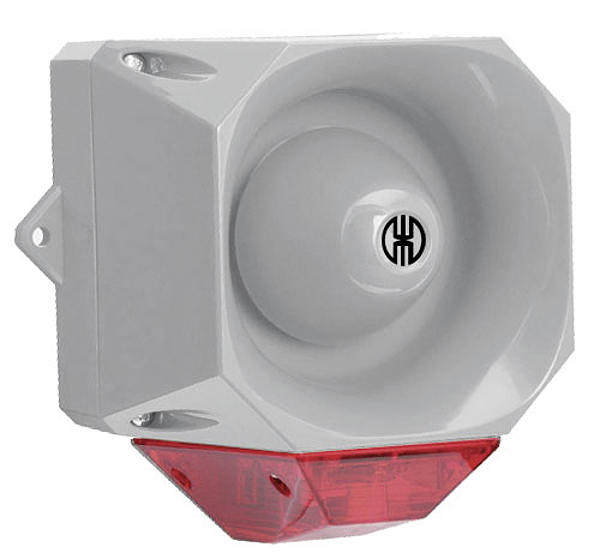

Flash/Sounder WM 32 tne 230VAC GY/RD
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
32 tones for a diverse range of applications. Application-specific sound output setting up to 110 dB. 2 tones can be triggered externally. Optical and acoustic signal can be separately triggered for two-stage, signalling
Технические характеристики
| Length: | 165 mm |
| Width: | 169 mm |
| Height: | 132 mm |
| Materials: | PC PC/ABS |
| Dome colour: | Red |
| Housing colour: | Grey |
| Protection category: | IP66 |
| Connection: | Screw terminals |
| cross-sectional area minimum: | 0,25mm² / 24AWG |
| cross-sectional area maximum: | 1,50mm² / 16AWG |
| Cable entry: | Screwed cable gland |
| Cable entry minimum: | d = 8 mm |
| Cable entry maximum: | d = 12 mm |
| Tension relief: | Present (conforms to VDI) |
| Type of fixing: | Wall mounting |
| Working temperature minimum: | -25°C |
| Working temperature maximum: | +70°C |
| Weight with packaging: | 772 g |
| Product weight: | 672 g |
| Operating voltage: | 230V |
| Operating voltage type: | AC |
| Operating voltage frequency: | 50Hz |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 230 VAC |
| Rated operational current: | 35 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Overvoltage category: | II |
| Isolation voltage: | Ui = 250V; Uimp = 2.500V |
| Light source: | Xenon |
| Light colour: | Red |
| Optical signal image: | Flash |
| Flash frequency: | 1 Hz |
| Flash output: | 2 J |
| Service life optical: | 50,000 h maximum |
| Volume/dB(max) at 1m distance: | 110,0 dB (A) |
| Acoustic signal image: | Multi-tone |
| Number of tones: | 32 tone |
| Acoustic service life: | 5,000 h minimum |
