Продукт
Werma
14400067
Сделать запрос
Авторское право на изображение: Werma

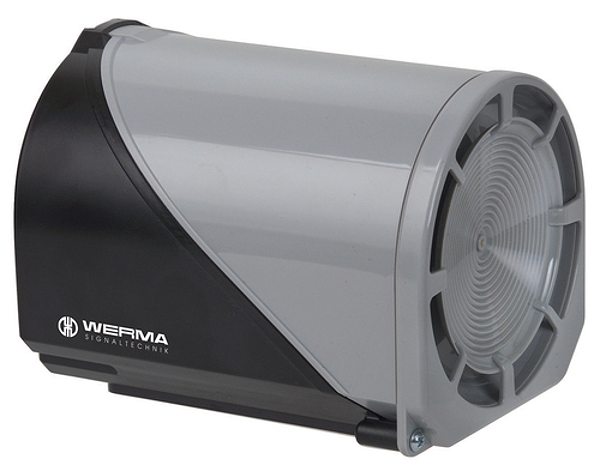

Werma 14400067
Multi-t.sounder BWM 32 tne 115VAC BK/GY
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Application-specific sound output setting up to 114 dB. 32 tones for a diverse range of applications. 3 tones can be triggered externally
Технические характеристики
| Length: | 113 mm |
| Width: | 109 mm |
| Height: | 150 mm |
| Materials: | PC/ABS |
| Housing colour: | Black |
| Protection category: | IP65 |
| Connection: | Spring-type terminal |
| cross-sectional area maximum: | 1,50mm² / 16AWG |
| Cable entry: | Membrane grommet |
| Cable entry minimum: | d = 1 mm |
| Cable entry maximum: | d = 13 mm |
| Type of fixing: | Base mounting Wall mounting |
| Working temperature minimum: | -30°C |
| Working temperature maximum: | +50°C |
| Weight with packaging: | 520 g |
| Product weight: | 450 g |
| Operating voltage: | 115V |
| Operating voltage type: | AC |
| Operating voltage frequency: | 60Hz |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 115 VAC |
| Rated operational current: | 55 mA |
| Rated inrush current: | 500 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Overvoltage category: | II |
| Isolation voltage: | Ui = 250V; Uimp = 2.500V |
| Volume/dB(max) at 1m distance: | 114,0 dB (A) |
| Acoustic signal image: | Multi-tone |
| Number of tones: | 32 tone |
| Acoustic service life: | 5,000 h minimum |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | |
| EAN: | |
| Вес: | 0,00 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
