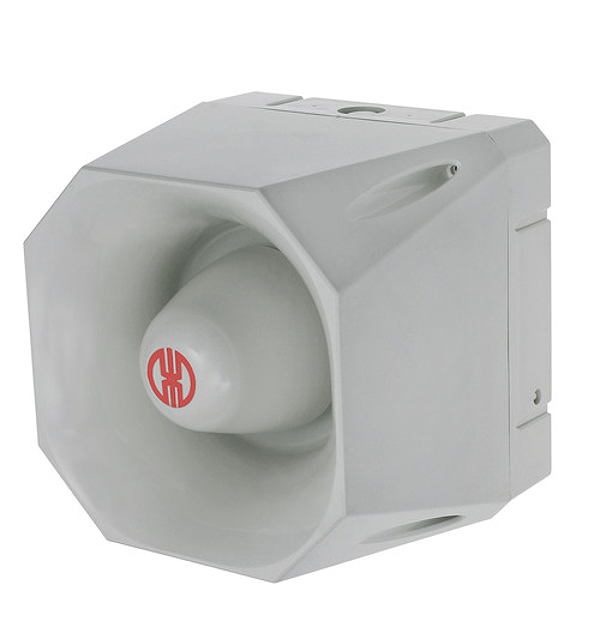

Werma 14210068
Multi-t.sounder WM 42 tne 115-230VAC GY
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Application-specific sound output setting up to 120 dB. 42 tones for a diverse range of applications. 3 tones can be triggered externally. High protection rating IP 66
Технические характеристики
| Length: | 155 mm |
| Width: | 168 mm |
| Height: | 168 mm |
| Materials: | PC/ABS |
| Housing colour: | Grey |
| Protection category: | IP66 |
| Connection: | Screw terminals |
| cross-sectional area maximum: | 2,50mm² / 14AWG |
| Cable entry: | Screwed cable gland |
| Cable entry minimum: | d = 8 mm |
| Cable entry maximum: | d = 12 mm |
| Tension relief: | Present (conforms to VDI) |
| Type of fixing: | Wall mounting |
| Working temperature minimum: | -25°C |
| Working temperature maximum: | +75°C |
| Weight with packaging: | 2220 g |
| Product weight: | 2028 g |
| Operating voltage: | 115-230V |
| Operating voltage type: | AC |
| Operating voltage frequency: | 50Hz at 230V 60Hz at 115V |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 230 VAC |
| Rated operational current: | 65 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Overvoltage category: | II |
| Isolation voltage: | Ui = 250V; Uimp = 2.500V |
| Service life optical: | 5,000 h minimum |
| Volume/dB(max) at 1m distance: | 120,0 dB (A) |
| Acoustic signal image: | Multi-tone |
| Number of tones: | 42 tone |
| Acoustic service life: | 5,000 h minimum |
