12800075

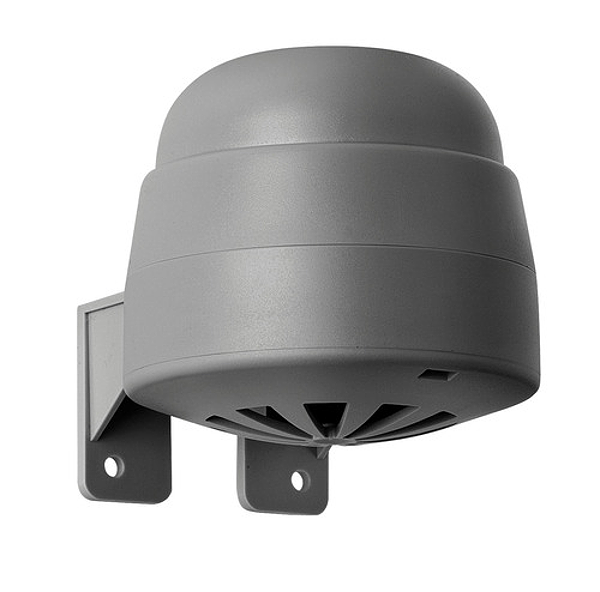

Buzzer WM Contin/pulse 24VAC/DC GY
Application-specific setting of continuous and pulse tone. Integrated bracket for simple wall mounting without additional, accessories
Length: | 91 mm |
Width: | 83 mm |
Height: | 84 mm |
Diameter: | 83 mm |
Materials: | PC PC/ABS |
Housing colour: | Grey |
Protection category: | IP65 |
Connection: | Screw terminals |
cross-sectional area maximum: | 1,50mm² / 16AWG |
Cable entry: | Membrane grommet |
Cable entry minimum: | d = 1 mm |
Cable entry maximum: | d = 9 mm |
Tension relief: | Pull-out protection |
Type of fixing: | Wall mounting |
Working temperature minimum: | -20°C |
Working temperature maximum: | +50°C |
Weight with packaging: | 137 g |
Product weight: | 106 g |
Operating voltage: | 24V |
Operating voltage type: | AC/DC |
Operating voltage frequency: | 50Hz |
Operating voltage tolerance: | +/- 10% |
Rated operational voltage: | 24 VDC |
Rated operational current: | 15 mA |
Rated inrush current: | 500 mA |
Protection class: | Protection class 2 |
Pollution degree: | 3 |
Volume/dB(max) at 1m distance: | 92,0 dB (A) |
Acoustic signal image: | Continuous tone Pulse tone |
Audio frequency: | 2300 Hz |
Acoustic service life: | 5,000 h minimum |
