102417

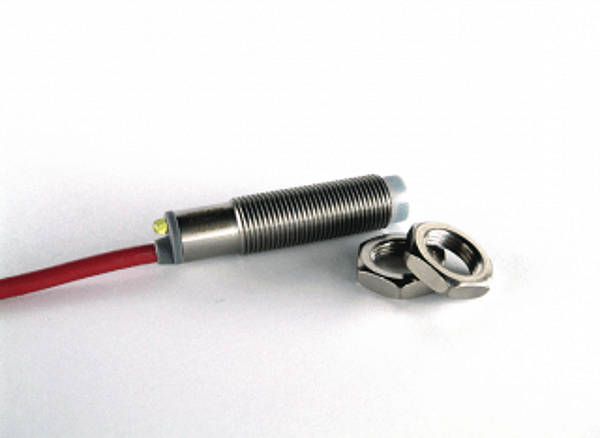

IAS-10-A22-S-M12-PTFE/VAb-100C-Z02-0
Thread / Process connection: | M 12 x 1 |
Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
Housing material: | Edelstahl Nr. 1.4305 |
Housing material lid: | PA |
Electrical version: | 3-Leiter DC |
Operating current (Ie): | 0…150 mA |
Voltage drop max. (Ud): | ≤ 3,5 V |
Permitted residual ripple max.: | 10% |
Noload current (Io): | Typ. 15 mA |
Frequency of operating cycles max.: | 2 kHz |
LEDdisplay: | Gelb |
Protective circuit: | Eingebaut |
Degree of protection IEC 60529: | IP 67 |
Norm: | EN 60947-5-2 |
Sensing dinstance Sn: | 4 mm |
Operating voltage: | 10…35 V DC |
Permitted ambient temperature min.: | -25 °C |
Permitted ambient temperature max.: | +100 °C |
Installation: | Nichtbündig |
Output function: | Schließer |
Output signal: | PNP |
Cable length: | 2 m |
Connection: | Silikon-Kabel, 3 x 0,22 mm² |
CE: | JA |
RoHS: | JA |
MTTF: | 1218 Jahre |
WHG certification: | Auf Anfrage |
ТН ВЭД: | |
Страна происхождения: | |
EAN: | |
Вес: | 0,00 kg |
Длина: | 0,00 m |
Ширина: | 0,00 m |
Высота: | 0,00 m |
