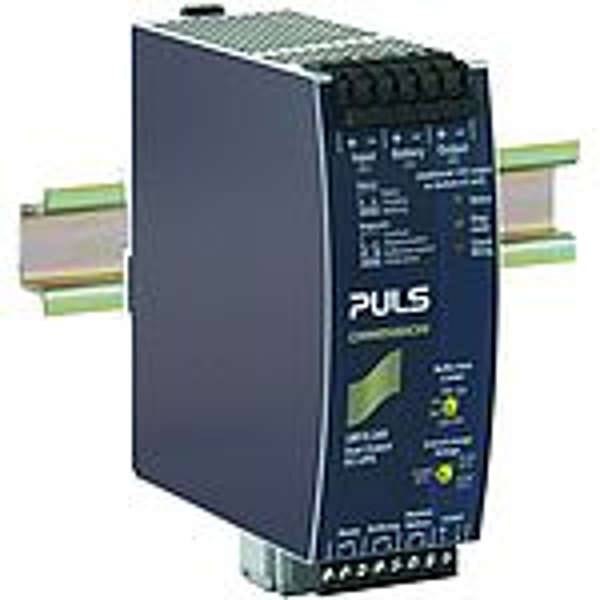

Puls UB10.245
DC-UPS control unit
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
24V DC-UPS with an additional 12V output, for various applications. Only one 12V battery required. Stable output voltage in buffer mode. Superior battery management for longest battery life. Comprehensive diagnostic and monitoring functions. Replace battery signal included. Electronically overload and short circuit protected. 50% Power reserves
Технические характеристики
| DC-Input Voltage: | DC 24V |
| Int. Current consumption (incl. Charging Current): | 1.3A |
| Nominal Voltage: | 24Vdc |
| Output Current: | 15A |
| Output Power: | 360W |
| Storage element: | external lead acid battery |
| Allowed Battery Size: | 12V, 3.9 to 40Ah |
| Temperature Tracking of the End-of-Charge Voltage: | manual-select |
| Size (WxHxD): | 49mm x 124mm x 117mm |
| Weight per Piece (excluding packing): | 350g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Derating: | 0.25W/°C at >+60°C |
| Mounting Method: | Din-Rail |
| MTBF SN 29500 @ 40°C (h): | 788.000h |
| Connection method: | Spring terminals |
| I2): | 15A/360W resp. 30A/720W for up to 5s |
