S420-OS-CB2-LW

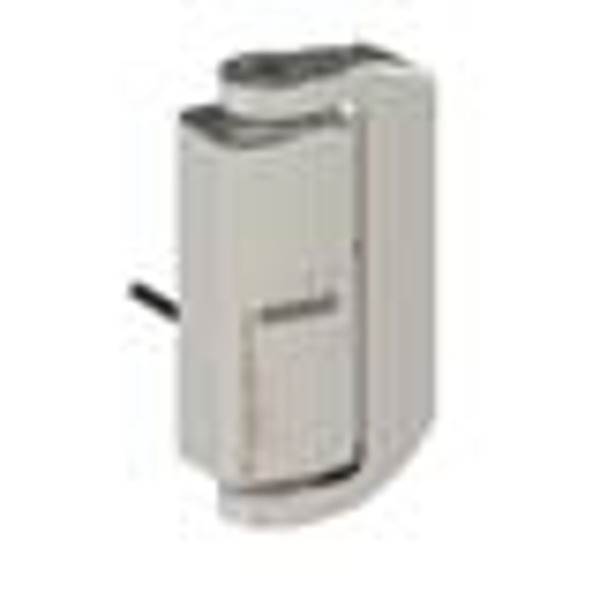

S420-OS-CB2-LW - Safety hinge switch
Kontaktbestückung: OSSDs, Schleichkontakt; Anzahl Sicherheits-Schaltausgänge (OSSDs): 2 St.; Anschluss: Leitung, 8 -adrig, 2.000 mm, PVC; Abmessung: 76 mm x 31,5 mm x 126 mm; Werkstoff Gehäuse: Edelstahl, AISI 316L; Seite der Leitungseinführung: wandseitig; Schaltertyp: Verriegelungseinrichtung ohne Zuhaltung, ISO 14119; Schutzart: IP 67, IP 69K; Zulassungen: c UL US, TÜV Süd
Series: | S400 |
Functions: | Mechanical hinge with integrated safety switch, Integration in control circuits up to category 4 in accordance with EN ISO 13849-1, LED indicator, Locking device without guard interlocking according to EN ISO 14119 |
SIL: | 3, IEC 61508 |
SILCL: | 3, IEC/EN 62061 |
Performance Level (PL): | e, EN ISO 13849-1 |
Mission time: | 20 years, EN ISO 13849-1 |
Category: | 4, EN ISO 13849 |
B10d: | 5,000,000 number of cycles |
Protective circuit: | Short circuit protected, Overvoltage protection |
Usage category at DC 13: | Ue 24 V, Ie 2 A, EN 60947-5-1 |
Usage category at AC 15: | Ue 24 V, Ie 2 A, EN 60947-5-1 |
Contact allocation: | OSSDs |
Short circuit protected: | 500 V, 2 A, type gG, IEC 60269-1 |
Supply voltage UB: | 24 V, DC, -15 ... 10 % |
Rated insulation voltage: | 30 V AC, 36 V DC |
Conventional thermal current, max.: | 2 A |
Number of digital switching inputs: | 2 Piece(s) |
Type: | Digital switching input |
Switching voltage, typ.: | 24 V |
Voltage type: | DC |
Switching current, typ.: | 5 mA |
Current consumption, max.: | 5 mA |
Number of safety-related switching outputs (OSSDs): | 2 Piece(s) |
Number of digital switching outputs: | 1 Piece(s) |
Type: | Safety-related switching output OSSD |
Voltage type: | DC |
Switchable load per OSSD, max.: | 6 V·A |
Switching element: | Transistor, PNP |
Switching element: | Transistor, PNP |
Type: | Digital switching output |
Switching voltage, typ.: | 24 V |
Voltage type: | DC |
Switching current, max.: | 0.1 mA |
Switching element: | Transistor, PNP |
Number of connections: | 1 Piece(s) |
Function: | Contact connection |
Type of connection: | Cable |
Cable length: | 2,000 mm |
Sheathing material: | PVC |
Number of conductors: | 8 -wire |
Design: | Cubic |
Dimension (W x H x L): | 76 mm x 31.5 mm x 126 mm |
Housing material: | Stainless steel, AISI 316L |
Electrical contact material: | Silver alloy |
Net weight: | 1,025 g |
Housing color: | Silver |
Type of fastening: | Mounting thread, Mounting plate |
Side of cable entry: | Wall side |
Switch type: | Interlock device without guard interlocking, ISO 14119 |
Switching principle: | Slow-action contact |
Axial stress: | 2,000 N·m |
Radial stress: | 2,000 N·m |
Torsional stress: | 50 N·m |
Mechanical life time: | 1,000,000 actuation cycles, IEC 6047-5-1 |
Actuation frequency, max.: | 1,200 per hour, IEC 6047-5-1 |
Internal actuator: | Safety switch in hinge, encapsulated |
Actuating path (angle) with forced separation: | 4 N, From set switching point |
Actuation angle, max.: | 180 ° |
Number of LEDs: | 4 Piece(s) |
Ambient temperature, operation: | -25 ... 70 °C |
Degree of contamination: | 3, EN 60947-1 |
Degree of protection: | IP 67, IP 69K |
Certifications: | c UL US, TÜV Süd |
Customs tariff number: | 85369095 |
eCl@ss 8.0: | 27270609 |
eCl@ss 9.0: | 27270609 |
ETIM 5.0: | EC002591 |
ETIM 6.0: | EC002591 |
