63000404
S410-M1CB2-B

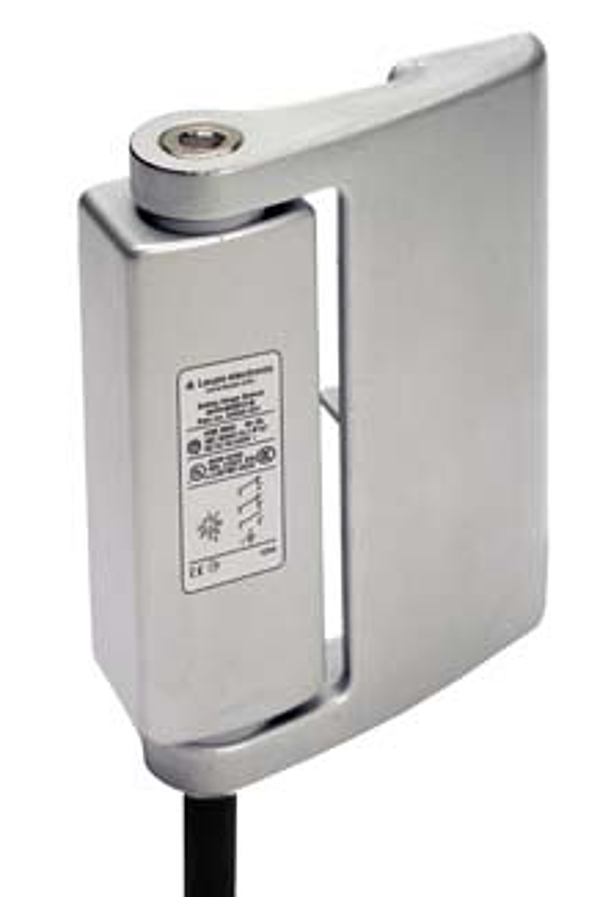

S410-M1CB2-B - Safety hinge switch
Series: | S400 |
Functions: | Locking device without guard interlocking according to EN ISO 14119, Integration in control circuits up to category 4 in accordance with EN ISO 13849-1, Mechanical hinge with integrated safety switch |
Mission time: | 20 years, EN ISO 13849-1 |
B10d: | 2,000,000 number of cycles |
Usage category at DC 13: | Ue 24 V, Ie 2 A, EN 60947-5-1 |
Usage category at AC 15: | Ue 24 V, Ie 2 A, EN 60947-5-1 |
Contact allocation: | 2NC + 1NO |
Contact opening: | Force-fit |
Short circuit protected: | 500 V, 2 A, type gG, IEC 60269-1 |
Rated insulation voltage: | 30 V AC, 36 V DC |
Conventional thermal current, max.: | 2 A |
Number of connections: | 1 Piece(s) |
Function: | Contact connection |
Type of connection: | Cable |
Cable length: | 2,000 mm |
Sheathing material: | PVC |
Number of conductors: | 7 -wire |
Design: | Cubic |
Dimension (W x H x L): | 79 mm x 22.5 mm x 100.6 mm |
Housing material: | Metal, ZAMAK |
Electrical contact material: | Silver alloy |
Net weight: | 589 g |
Housing color: | Silver |
Type of fastening: | Mounting thread |
Side of cable entry: | From below (with left installation) |
Switch type: | Interlock device without guard interlocking, ISO 14119 |
Switching principle: | Snap-action contact |
Axial stress: | 750 N·m |
Radial stress: | 500 N·m |
Torsional stress: | 12 N·m |
Mechanical life time: | 1,000,000 actuation cycles, IEC 6047-5-1 |
Actuation frequency, max.: | 1,200 per hour, IEC 6047-5-1 |
Internal actuator: | Safety switch in hinge, encapsulated |
Actuating path (angle) with forced separation: | 4 N, From set switching point |
Actuation angle, max.: | 180 ° |
Ambient temperature, operation: | -25 ... 80 °C |
Degree of contamination: | 3, EN 60947-1 |
Degree of protection: | IP 67, IP 69K |
Certifications: | IMQ, c UL US, TÜV Süd |
Customs tariff number: | 85369095 |
eCl@ss 8.0: | 27270609 |
eCl@ss 9.0: | 27270609 |
ETIM 5.0: | EC002591 |
ETIM 6.0: | EC002591 |
ТН ВЭД: | |
Страна происхождения: | Italien |
EAN: | |
Вес: | 0,60 kg |
Длина: | 0,00 m |
Ширина: | 0,00 m |
Высота: | 0,00 m |
