549797
UMC-1143-S2

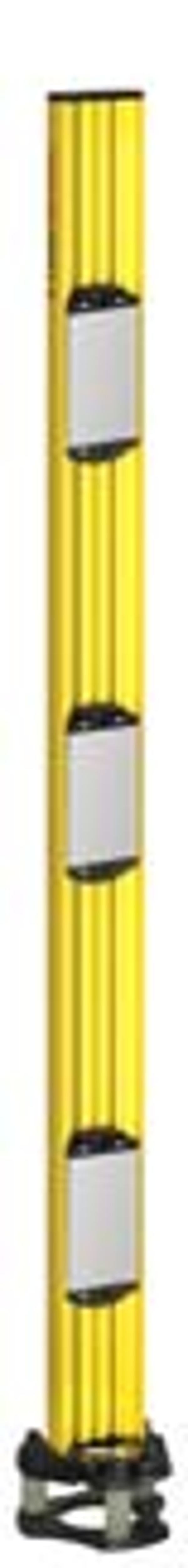

UMC-1143-S2 - Mirror column
Series: | UMC |
Number of individual mirrors: | 3 Piece(s) |
Contains: | Mounting kit for floor assembly |
Suitable for: | MLD 500, MLD 300 multiple light beam safety devices |
Type, columns and mirrors: | Deflecting mirror column for multiple light beam safety devices |
Functions: | Automatic resetting after mechanical impacts with special spring elements, Adjustable, 3 directions, Easy axial alignment, Precise alignment of the individual mirrors in all 3 axes, Simple height adjustment of the mirrors |
Dimension (W x H x L): | 160 mm x 1,200 mm x 149 mm |
Housing material: | Metal, Aluminum, Plastic |
Net weight: | 4,985 g |
Housing color: | Yellow, RAL 1021, Black, RAL 9005 |
Type of fastening: | Floor mounting, Mounting plate |
Mechanical reset function: | Yes |
Column height without foot: | 1,140 mm |
Exterior mounting of accessories: | Rear |
Center-to-center spacing of individual mirrors: | 400 mm |
Customs tariff number: | 76042990 |
eCl@ss 8.0: | 27279207 |
eCl@ss 9.0: | 27273605 |
ETIM 5.0: | EC002467 |
ETIM 6.0: | EC002467 |
ТН ВЭД: | |
Страна происхождения: | Deutschland |
EAN: | |
Вес: | 7,20 kg |
Длина: | 0,00 m |
Ширина: | 0,00 m |
Высота: | 0,00 m |
