549782
UMC-1600-S2

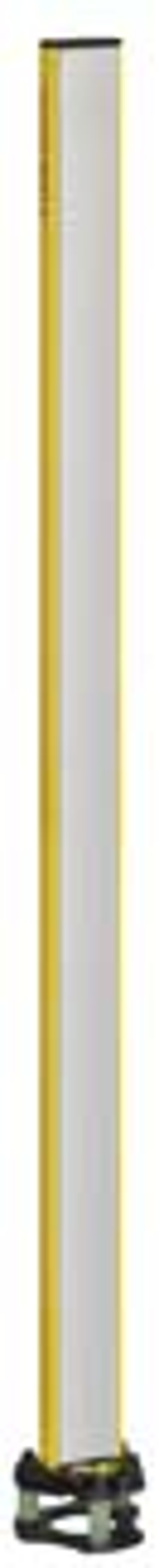

UMC-1600-S2 - Mirror column
Series: | UMC |
Contains: | Mounting kit for floor assembly |
Suitable for: | COMPACTplus safety light curtains, MLC 500, MLC 300 safety light curtains, SOLID -4, -2 safety light curtains |
Type, columns and mirrors: | Deflecting mirror column for safety light curtains |
Functions: | Easy axial alignment, Adjustable, 3 directions, Automatic resetting after mechanical impacts with special spring elements, Continuous mirror surface for beam deflection of safety light curtains, Glass mirror in extruded aluminum profile |
Dimension (W x H x L): | 160 mm x 1,660 mm x 149 mm |
Housing material: | Metal, Aluminum |
Net weight: | 6,930 g |
Housing color: | Yellow, RAL 1021, Black, RAL 9005 |
Type of fastening: | Floor mounting, Mounting plate |
Mechanical reset function: | Yes |
Exterior mounting of accessories: | Rear |
Mirror length: | 1,570 mm |
Customs tariff number: | 76042990 |
eCl@ss 8.0: | 27279207 |
eCl@ss 9.0: | 27273605 |
ETIM 5.0: | EC002467 |
ETIM 6.0: | EC002467 |
ТН ВЭД: | |
Страна происхождения: | Deutschland |
EAN: | |
Вес: | 9,60 kg |
Длина: | 0,00 m |
Ширина: | 0,00 m |
Высота: | 0,00 m |
