547955
MSI-RM2B-02

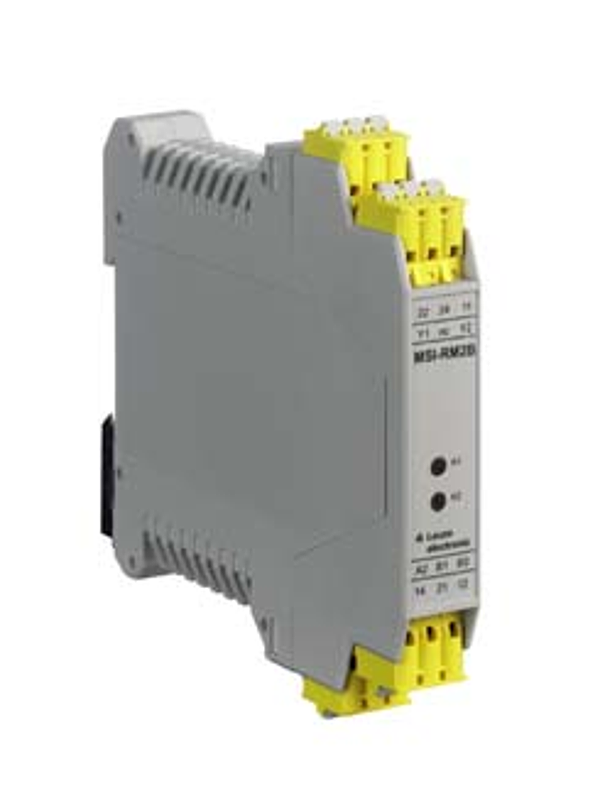

MSI-RM2B-02 - Safety relay
Series: | MSI-RM2B |
Functions: | Signal conversion of electronic safety outputs on potential-free relay contacts |
Restart: | Automatic |
Mission time: | 20 years, EN ISO 13849-1 |
Category: | Up to 4 (depending on the category of the upstream protective device), EN ISO 13849 |
B10d at DC1 (ohmic load): | 10,000,000 number of cycles, (2 A, 24 V) |
B10d at AC1 (ohmic load): | 1,300,000 number of cycles, (0.5 A, 230 V) |
B10d at DC13 (inductive load): | 10,000,000 number of cycles, (2 A, 24 V) |
B10d at AC15 (inductive load): | 1,300,000 number of cycles, (0.5 A, 230 V) |
B10d, low load: | 1,860,000 number of cycles |
Protective circuit: | Fuse on switching output, upstream |
Switching frequency, max.: | 36000 switching cycles/h |
Continuous current per current path, max.: | 3 A |
External contact fuse protection per current path: | 5 A quick-action, or 3.15 A delay-action |
Permissible input line resistance, max.: | 50 Ω |
Supply voltage UB: | 24 V, DC, -20 ... 20 % |
Number of safety-related switching outputs (OSSDs): | 2 Piece(s) |
Type: | Safety-related switching output OSSD |
Voltage type: | AC/DC |
Switching element: | Relay, NO |
Switching element: | Relay, NO |
Pickup delay: | 20 ms |
Regression delay: | 10 ms |
Number of connections: | 1 Piece(s) |
Function: | Connection to device |
Type of connection: | Terminal |
Type of terminal: | Spring-cage terminal |
No. of pins: | 12 -pin |
Connection cross sections: | 0.2 to 1.5 mm² |
Dimension (W x H x L): | 17.5 mm x 111 mm x 114.1 mm |
Housing material: | Plastic, PA 66 |
Electrical contact material: | AgNi10 + 5 mm Au |
Net weight: | 120 g |
Housing color: | Gray |
Type of fastening: | Snap-on mounting |
Mechanical life time: | 10,000,000 actuation cycles |
Type of display: | LED |
Number of LEDs: | 2 Piece(s) |
Ambient temperature, operation: | 0 ... 50 °C |
Ambient temperature, storage: | -25 ... 70 °C |
Degree of protection: | IP 20 |
Protection class: | II |
Certifications: | TÜV NRTL US, c UL US |
Customs tariff number: | 85371098 |
eCl@ss 8.0: | 27371819 |
eCl@ss 9.0: | 27371819 |
ETIM 5.0: | EC001449 |
ETIM 6.0: | EC001449 |
