547933
MSI-CM52B-01

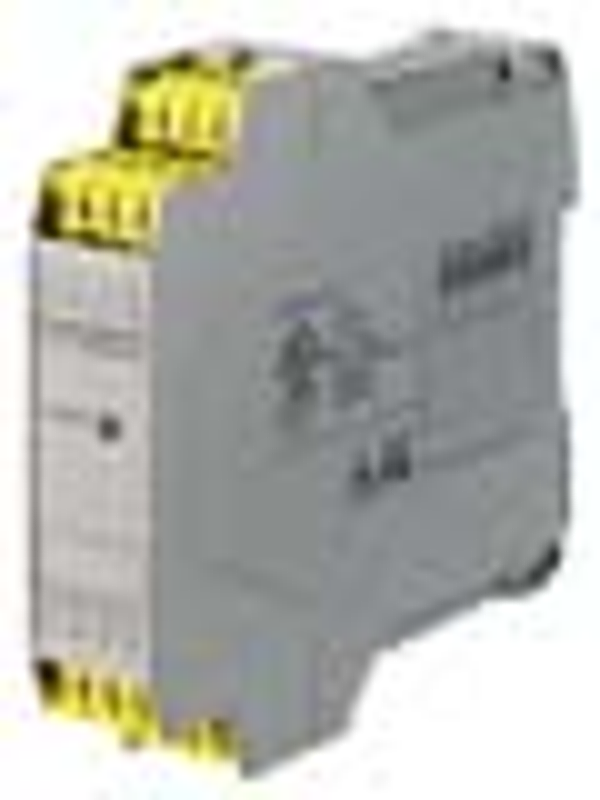

MSI-CM52B-01 - Safety relay
Series: | MSI-CM |
Functions: | Contact extension for E-stop relays and two-hand control units |
Restart: | Automatic |
SIL: | 3, IEC 61508 |
SILCL: | 3, IEC/EN 62061 |
Performance Level (PL): | e, EN ISO 13849-1 |
MTTFd: | 262 years, EN ISO 13849-1 |
PFHD: | 0.0000000001 per hour |
PFHD, nop = 8766: | 0.000000000102 per hour |
Mission time: | 20 years, EN ISO 13849-1 |
Category: | 4, EN ISO 13849 |
STOP category: | 0, IEC/EN 60204-1 |
B10d at AC15 (inductive load): | 230,000 number of cycles |
Protective circuit: | Overvoltage protection |
Number of connections: | 1 Piece(s) |
Function: | Voltage supply, Connection to device |
Type of connection: | Terminal |
Type of terminal: | Screw terminal |
No. of pins: | 16 -pin |
Connection cross sections: | 1 x 0.2 to 2.5 mm², wire, 1 x 0.2 to 2.5 mm², wire |
Dimension (W x H x L): | 22.5 mm x 99 mm x 114.5 mm |
Housing material: | Plastic, Unreinforced polyamide PA |
Electrical contact material: | AgSnO2, gold flashed |
Net weight: | 231 g |
Housing color: | Gray |
Type of fastening: | Snap-on mounting |
Mechanical life time: | 100,000,000 actuation cycles |
Type of display: | LED |
Number of LEDs: | 1 Piece(s) |
Ambient temperature, operation: | -20 ... 55 °C |
Ambient temperature, storage: | -40 ... 70 °C |
Degree of protection: | IP 20 (terminals), IP 40 (housing) |
Certifications: | c UL, TÜV Rheinland, UL |
Customs tariff number: | 85371098 |
eCl@ss 8.0: | 27371819 |
eCl@ss 9.0: | 27371819 |
ETIM 5.0: | EC001449 |
ETIM 6.0: | EC001449 |
ТН ВЭД: | |
Страна происхождения: | Deutschland |
EAN: | |
Вес: | 0,27 kg |
Длина: | 0,00 m |
Ширина: | 0,00 m |
Высота: | 0,00 m |
