Leuze electronic
50144038
KDS U-M8-4A-M8-4A-P1-030
Сделать запрос
Авторское право на изображение: Leuze electronic
Leuze electronic 50144038
KDS U-M8-4A-M8-4A-P1-030

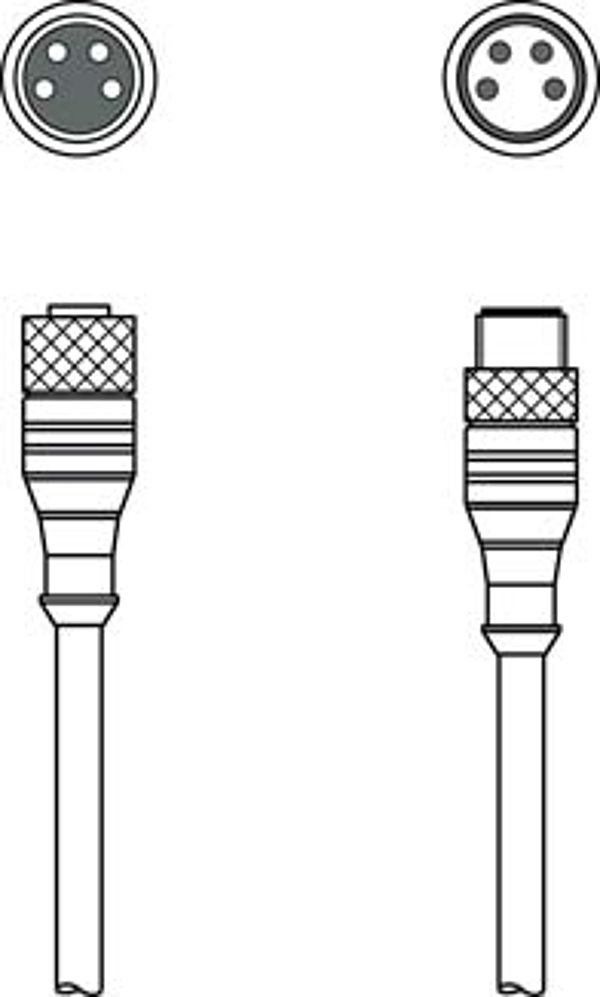

KDS U-M8-4A-M8-4A-P1-030 - Interconnection cable
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Технические характеристики
| Operating voltage: | 30 V AC/DC |
| Rated operating current: | 4,000 mA |
| Type of connection: | Connector |
| Thread size: | M8 |
| Type: | Female |
| No. of pins: | 4 -pin |
| Encoding: | A-coded |
| Version: | Axial |
| Type of connection: | Connector |
| Thread size: | M8 |
| Type: | Male |
| No. of pins: | 4 -pin |
| Encoding: | A-coded |
| Version: | Axial |
| Lock: | Screw fitting, nickel-plated brass, recommended torque 0.4 Nm, self-locking |
| Sheathing color: | Black |
| Shielded: | No |
| Silicone-free: | Yes |
| Cable design: | Interconnection cable |
| Cable length: | 3,000 mm |
| Sheathing material: | PUR |
| Wire insulation: | PUR |
| Suitability for drag chains: | Yes |
| Traverse rate: | Max. 3.3 m/s with horiz. traverse path of 5m and and max. acceleration of 5m/s² |
| Properties of the outer sheathing: | Free of CFC, cadmium, silicone, halogen and lead, matt, low-adhesion, abrasion-resistant, easily machine-processable |
| Resistance of the outer sheathing: | Hydrolysis and microbe resistant, good oil, gasoline and chemical resistance in accordance with VDE 0472 part 803 test B, flame retardant in accordance with UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2 |
| Torsion suitability: | ±180° / m (max. 2 mio. cycles with 35 cycles / min) |
| Width across flats: | 9 mm |
| Bending cycles: | 5,000,000 Piece(s) |
| Bending radius, flexible laying, min.: | Min. 10 x cable diameter |
| Bending radius, stationary laying, min.: | Min. 5 x cable diameter |
| Degree of protection: | IP 67 |
| Certifications: | CSA, UL |
| Customs tariff number: | 85444290 |
| eCl@ss 8.0: | 27279218 |
| eCl@ss 9.0: | 27060311 |
| ETIM 5.0: | EC001855 |
| ETIM 6.0: | EC001855 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Tschechische Republik |
| EAN: | |
| Вес: | 0,16 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
