Leuze electronic
50144033
IS 208MM/4NO-3E0-S12
Сделать запрос

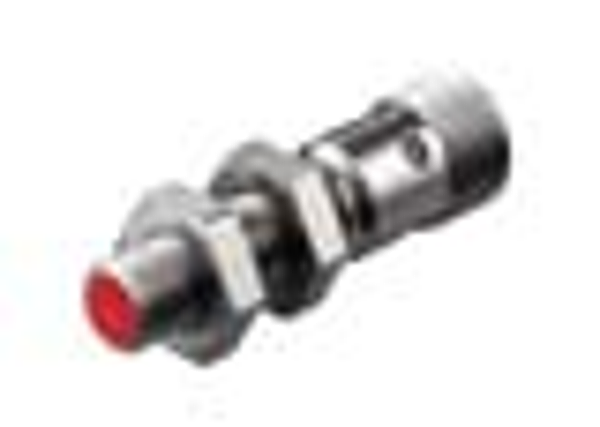

Авторское право на изображение: Leuze electronic
Leuze electronic 50144033
IS 208MM/4NO-3E0-S12
IS 208MM/4NO-3E0-S12 - Inductive switch
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Технические характеристики
| Series: | 208 |
| Typ. operating range limit Sn: | 3 mm |
| Operating range Sa: | 0 ... 2.43 mm |
| Protective circuit: | Inductive protection, Polarity reversal protection, Short circuit protected |
| Supply voltage UB: | 10 ... 30 V, DC |
| Residual ripple: | 0 ... 20 %, From UB |
| Open-circuit current: | 0 ... 10 mA |
| Temperature drift, max. (in % of Sr): | 10 %, Over the entire operating temperature range |
| Repeatability, max. (in % of Sr): | 5 %, For UB = 20 … 30 V DC, ambient temperature Ta = 23 °C ± 5 °C |
| Switching hysteresis: | 20 % |
| Number of digital switching outputs: | 1 Piece(s) |
| Voltage type: | DC |
| Switching current, max.: | 200 mA |
| Switching voltage: | Low: ≤2V |
| Residual current, max.: | 0.1 mA |
| Voltage drop: | 2 V |
| Switching element: | Transistor, PNP |
| Switching principle: | NO (normally open) |
| Switching frequency: | 1,000 Hz |
| Number of connections: | 1 Piece(s) |
| Function: | Signal OUT, Voltage supply |
| Type of connection: | Connector |
| Thread size: | M12 |
| Type: | Male |
| Material: | Stainless steel |
| No. of pins: | 4 -pin |
| Encoding: | A-coded |
| Design: | Cylindrical |
| Thread size: | M8 x 1 mm |
| Dimension (Ø x L): | 8 mm x 66 mm |
| Type of installation: | Embedded |
| Housing material: | Metal, Chromed nickel |
| Sensing face material: | Plastic, Polybutylene (PBT) |
| Net weight: | 20 g |
| Housing color: | Silver, Red, RAL 3000 |
| Type of fastening: | Mounting thread, Via optional mounting device |
| Standard measuring plate: | 9 x 9 mm², Fe360 |
| Type of display: | LED |
| Number of LEDs: | 1 Piece(s) |
| Ambient temperature, operation: | -25 ... 70 °C |
| Ambient temperature, storage: | -25 ... 70 °C |
| Degree of protection: | IP 67 |
| Protection class: | III |
| Certifications: | c UL US |
| Test procedure for EMC in accordance with standard: | IEC 61000-4-3, IEC 61000-4-2, IEC 61000-4-4 |
| Standards applied: | IEC 60947-5-2 |
| Aluminum: | 0.33 |
| Stainless steel: | 0.72 |
| Copper: | 0.27 |
| Brass: | 0.41 |
| Fe360 steel: | 1 |
| Customs tariff number: | 85365019 |
| eCl@ss 8.0: | 27270101 |
| eCl@ss 9.0: | 27270101 |
| ETIM 5.0: | EC002714 |
| ETIM 6.0: | EC002714 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Sri Lanka |
| EAN: | |
| Вес: | 0,02 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
