50143343
LBK Sensor

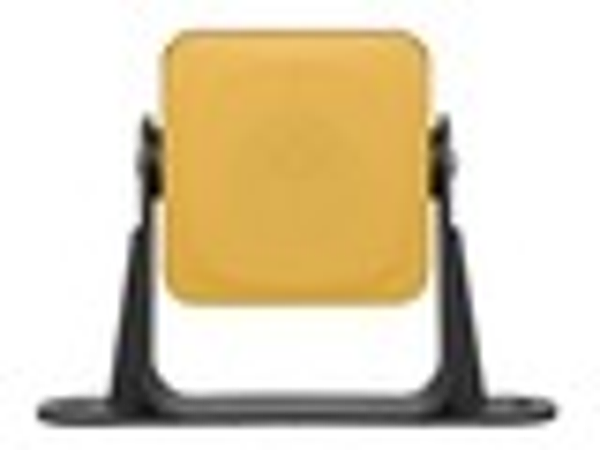

LBK Sensor - Safety radar sensor
Series: | LBK-S01-LZ |
Type: | Radar sensor |
Application: | Stationary danger zone guarding, Stationary access guarding |
Operating principle: | FMCW, Detection of movement, Detection of persons |
Operating range: | 0 ... 4 m |
Angle of radiation, horizontal: | Narrow: 50°, Wide: 110° |
Angle of radiation, vertical: | Narrow: 15°, Wide: 30° |
Emitted power: | ≤ 13 dBm |
Frequency range: | 24,000 ... 24,500 MHz |
SIL: | 2, IEC 61508 |
SILCL: | 2, IEC/EN 62061 |
Performance Level (PL): | d, EN ISO 13849-1 |
PFHD: | 4,34E-08 per hour |
Mission time: | 20 years, EN ISO 13849-1 |
Category: | 2 (3 for all outputs), EN ISO 13849 |
Supply voltage UB: | 12 V, DC, -20 ... 20 % |
Power consumption, max.: | 1.2 W |
Response time: | 100 ms |
Restart delay time (automatic start): | 10,000 ms |
Number of connections: | 2 Piece(s) |
Function: | Voltage supply, BUS IN |
Type of connection: | Connector, Two pairs of twisted pairs |
Thread size: | M12 |
Type: | Male |
Material: | Metal |
No. of pins: | 5 -pin |
Function: | BUS OUT |
Type of connection: | Connector |
Length of connection cable, max.: | 30 m |
Dimension (W x H x L): | 165 mm x 125 mm x 53 mm |
Housing material: | Plastic, PA 66 |
Mounting bracket material: | PA 66, glass fiber reinforced |
Net weight: | 200 g |
Housing color: | Yellow, RAL 1023 |
Number of LEDs: | 1 Piece(s) |
Ambient temperature, operation: | -40 ... 60 °C |
Ambient temperature, storage: | -40 ... 80 °C |
Relative humidity (non-condensing): | 0 ... 95 % |
Degree of protection: | IP 67 |
Certifications: | IMQ |
Customs tariff number: | 85261000 |
eCl@ss 8.0: | 27280800 |
eCl@ss 9.0: | 27280800 |
ETIM 5.0: | EC001825 |
ETIM 6.0: | EC001825 |
