50142455
A7-MH1

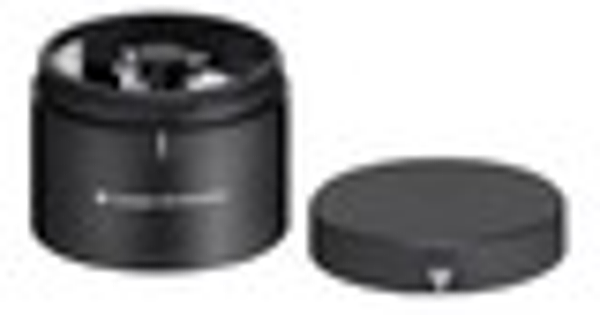

A7-MH1 - Signaling column element
Series: | A7 |
Design: | Cylindrical |
Dimension (Ø x L): | 70 mm x 47 mm |
Housing material: | Plastic, PC |
Net weight: | 85 g |
Housing color: | Black |
Design of mounting device: | Horizontal mounting |
Type of fastening, at system: | Screw type / horizontal |
Module holder: | One side |
Ambient temperature, operation: | -10 ... 60 °C |
Degree of protection: | IP 66, Only when mounted on a housing with the same degree of protection |
Certifications: | CSA |
Customs tariff number: | 85318070 |
eCl@ss 8.0: | 27371234 |
eCl@ss 9.0: | 27371234 |
ETIM 5.0: | EC001259 |
ETIM 6.0: | EC001259 |
ТН ВЭД: | |
Страна происхождения: | Indien |
EAN: | |
Вес: | 0,11 kg |
Длина: | 0,00 m |
Ширина: | 0,00 m |
Высота: | 0,00 m |
