Leuze electronic
50142449
SET HT46CI/PX-200+BTU300M-D10
Сделать запрос

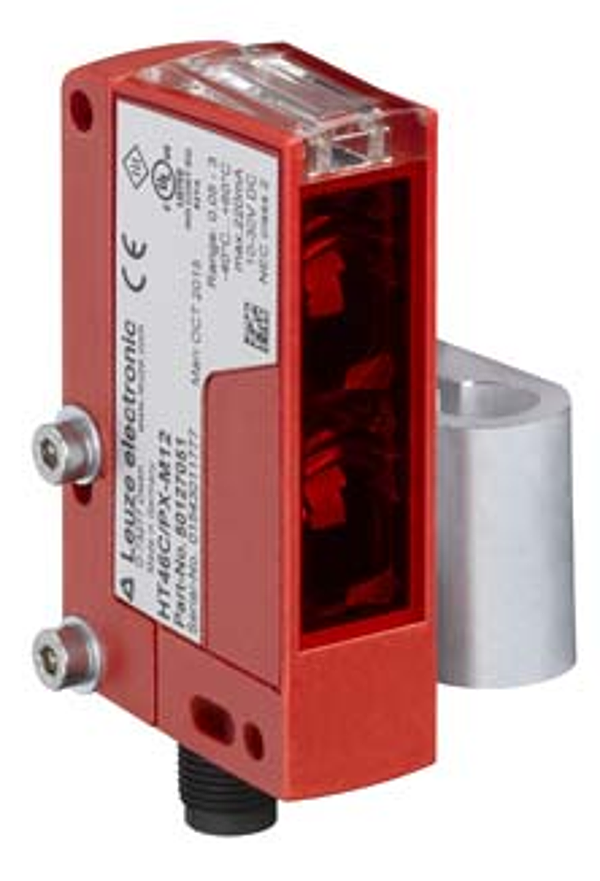

Авторское право на изображение: Leuze electronic
Leuze electronic 50142449
SET HT46CI/PX-200+BTU300M-D10
SET HT46CI/PX-200+BTU300M-D10 - Diffuse sensor with background suppression set
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Технические характеристики
| Series: | 46C |
| Operating principle: | Diffuse reflection principle with background suppression |
| Pre-mounted on: | Mounting system |
| Special version: | AS-Interface, connection via coupling module, Article set |
| Black-white error: | < 10% up to 1200 mm |
| Operating range, white 90%: | 0.005 ... 3 m |
| Operating range, gray 18%: | 0.02 ... 2 m |
| Operating range, black 6%: | 0.05 ... 1.5 m |
| Operating range limit: | 0.005 ... 3 m |
| Adjustment range: | 120 ... 3,000 mm |
| Light source: | LED, Infrared |
| Protective circuit: | Transient protection, Polarity reversal protection, Short circuit protected |
| Supply voltage UB: | 10 ... 30 V, DC, Incl. residual ripple |
| Residual ripple: | 0 ... 15 %, From UB |
| Open-circuit current: | 0 ... 30 mA |
| Number of digital switching outputs: | 1 Piece(s) |
| Switching element: | Transistor, PNP |
| Switching principle: | Dark switching |
| Switching frequency: | 250 Hz |
| Response time: | 2 ms |
| Function: | Signal OUT, Voltage supply |
| Type of connection: | Cable with connector |
| Cable length: | 200 mm |
| Thread size: | M12 |
| Material: | Plastic |
| No. of pins: | 4 -pin |
| Dimension (W x H x L): | 20.5 mm x 76.3 mm x 44 mm |
| Housing material: | Plastic, PC-PBT |
| Lens cover material: | Plastic / PMMA |
| Net weight: | 65 g |
| Type of fastening: | Via optional mounting device, Through-hole mounting |
| Compatibility of materials: | ECOLAB |
| Operational controls: | Multiturn potentiometer |
| Ambient temperature, operation: | -40 ... 60 °C |
| Degree of protection: | IP 67, IP 69K |
| Protection class: | III |
| Standards applied: | IEC 60947-5-2 |
| Customs tariff number: | 85365019 |
| eCl@ss 8.0: | 27270904 |
| eCl@ss 9.0: | 27270904 |
| ETIM 5.0: | EC002719 |
| ETIM 6.0: | EC002719 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Deutschland |
| EAN: | |
| Вес: | 0,00 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
