50142437
IT 1950g SR-2-R

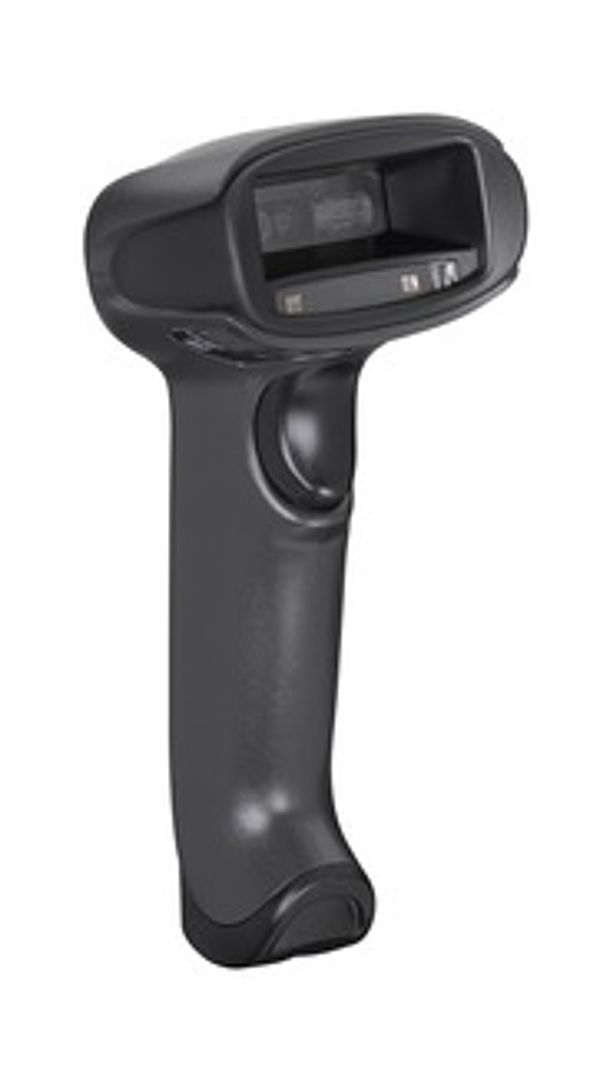

IT 1950g SR-2-R - Mobile 2D-code reader
Series: | IT19xx |
Code types, readable: | Composite Codes, 2/5 Interleaved, Aztec, Codabar, Code 128, Code 39, Code 93, Data Matrix Code, DotCode, EAN 128, EAN 8/13, EAN Addendum, GS1 Databar, GS1 Databar Expanded, GS1 Databar Limited, GS1 Databar Omnidirectional, GS1 Databar Stacked, GS1 Databar Truncated, Maxicode, Micro PDF, Micro QR, Others on request, PDF417, QR code, UPC |
Reading distance: | 0 ... 822 mm |
Camera resolution, horizontal: | 1,280 px |
Camera resolution, vertical: | 800 px |
Supply voltage UB: | 4 ... 5.5 V, DC |
Power consumption, max.: | 2.5 W |
Type: | PS/2, USB, RS 232 |
Function: | Process |
Function: | Process |
Type of connection: | RJ41 |
Dimension (W x H x L): | 70 mm x 80 mm x 160 mm |
Housing material: | Plastic, UL 94-V0 |
Net weight: | 160 g |
Ambient temperature, operation: | 0 ... 50 °C |
Ambient temperature, storage: | -40 ... 70 °C |
Relative humidity (non-condensing): | 0 ... 95 % |
Drop height: | 1.8 m |
Measurements relative to: | Concrete floor |
Degree of protection: | IP 41 |
Customs tariff number: | 84719000 |
eCl@ss 8.0: | 27280103 |
eCl@ss 9.0: | 27280103 |
ETIM 5.0: | EC002999 |
ETIM 6.0: | EC002999 |
ТН ВЭД: | |
Страна происхождения: | China |
EAN: | |
Вес: | 0,16 kg |
Длина: | 0,00 m |
Ширина: | 0,00 m |
Высота: | 0,00 m |
