50142209
HTU430B-6000.X3/LT4-M12

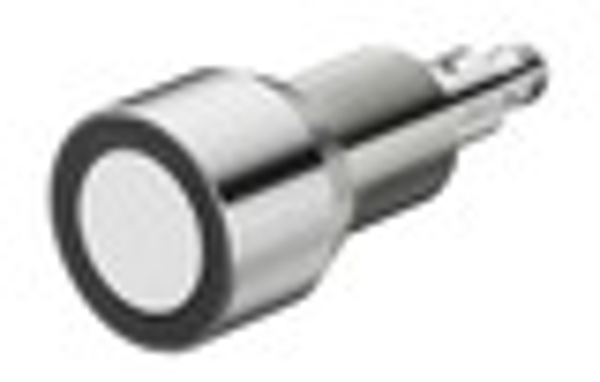

HTU430B-6000.X3/LT4-M12 - Ultrasonic sensor
Series: | 430 |
Operating principle: | Diffuse reflection principle with background suppression |
Contains: | 2x M30 mounting nut |
Special version: | 2 independent switching points, Multiplex operation, Synchronous operation |
Operating range: | Guaranteed operating range |
Operating range: | 0.6 ... 6 m |
Opening angle: | 15 ° |
Shape of sound lobe: | standard |
Direction of beam: | Front |
Repeatability: | 0.15 % |
Reference value repeatability: | End value |
Protective circuit: | Inductive protection, Polarity reversal protection, Short circuit protected |
Supply voltage UB: | 15 ... 30 V, DC |
Residual ripple: | 0 ... 10 %, From UB |
Open-circuit current: | 0 ... 50 mA |
Number of digital switching outputs: | 2 Piece(s) |
Switching current, max.: | 150 mA |
Switching element: | Transistor, Push-pull |
Switching principle: | IO-Link / NC contact/NO contact |
Switching element: | Transistor, PNP |
Switching principle: | NC contact/NO contact |
Number of inputs/outputs selectable: | 1 Piece(s) |
Switching voltage, outputs: | Typ. UB / 0 V |
Voltage type, inputs: | DC |
Switching voltage, inputs: | Typ. UB / 0 V |
Function: | Activation input, Freely configurable, Teach input |
Switching frequency: | 1.6 Hz |
Ultrasonic frequency: | 75 kHz |
Response time: | 380 ms |
Readiness delay: | 300 ms |
Type: | IO-Link |
Specification: | V1.1 |
Type of connection: | Connector |
Thread size: | M12 |
Material: | Metal |
No. of pins: | 5 -pin |
Encoding: | A-coded |
Design: | Cylindrical |
Thread size: | M30 x 1 mm |
Dimension (Ø x L): | 30 mm x 104.3 mm |
Housing material: | Metal, Nickel-plated brass |
Ultrasonic transducer material: | Piezoceramics (contains lead zirconium titanate (PZT)) |
Net weight: | 215 g |
Type of display: | LED |
Number of LEDs: | 2 Piece(s) |
Operational controls: | Control buttons |
Ambient temperature, operation: | -25 ... 50 °C |
Ambient temperature, storage: | -30 ... 85 °C |
Degree of protection: | IP 68, IP 67 |
Protection class: | III |
Certifications: | c UL US |
Standards applied: | IEC 60947-5-2 |
Customs tariff number: | 85365019 |
eCl@ss 8.0: | 27272803 |
eCl@ss 9.0: | 27272803 |
ETIM 5.0: | EC001849 |
ETIM 6.0: | EC001849 |
