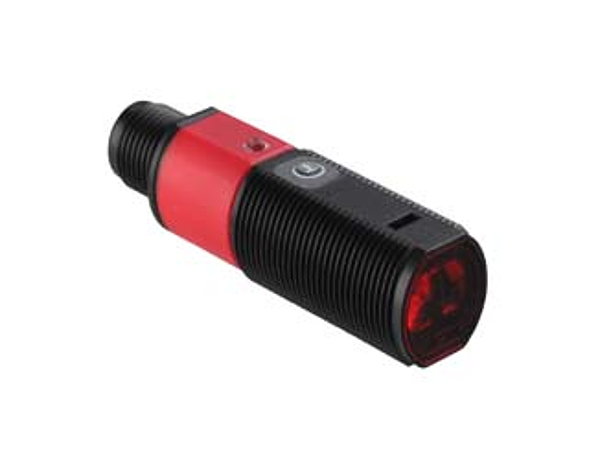

Авторское право на изображение: Leuze electronic
Leuze electronic 50141603
FT318B.3/2N-5000
FT318B.3/2N-5000 - Energetic diffuse sensor
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Технические характеристики
| Series: | 318B |
| Operating principle: | Diffuse reflection principle |
| Operating range, white 90%: | 0.001 ... 0.215 m |
| Operating range, gray 50%: | 0.001 ... 0.19 m |
| Operating range, gray 18%: | 0.003 ... 0.15 m |
| Operating range, black 6%: | 0.003 ... 0.125 m |
| Operating range limit, white 90%: | 0.001 ... 0.28 m |
| Operating range limit, gray 50%: | 0.001 ... 0.245 m |
| Operating range limit, gray 18%: | 0.003 ... 0.19 m |
| Operating range limit, black 6%: | 0.001 ... 0.16 m |
| Light source: | LED, Red |
| Protective circuit: | Short circuit protected, Polarity reversal protection |
| Supply voltage UB: | 10 ... 30 V, DC, Incl. residual ripple |
| Residual ripple: | 0 ... 15 %, From UB |
| Open-circuit current: | 0 ... 20 mA |
| Number of digital switching outputs: | 2 Piece(s) |
| Switching element: | Transistor, NPN |
| Switching principle: | Light switching |
| Switching element: | Transistor, NPN |
| Switching principle: | Dark switching |
| Switching frequency: | 500 Hz |
| Response time: | 1 ms |
| Function: | Signal OUT, Voltage supply |
| Type of connection: | Cable |
| Cable length: | 5,000 mm |
| Number of conductors: | 4 -wire |
| Thread size: | M18 x 1 mm |
| Dimension (Ø x L): | 18 mm x 46 mm |
| Housing material: | Plastic, ABS |
| Lens cover material: | Plastic |
| Net weight: | 120 g |
| Operational controls: | Teach button |
| Ambient temperature, operation: | -40 ... 60 °C |
| Degree of protection: | IP 67 |
| Protection class: | III |
| Certifications: | c UL US |
| Standards applied: | IEC 60947-5-2 |
| Customs tariff number: | 85365019 |
| eCl@ss 8.0: | 27270903 |
| eCl@ss 9.0: | 27270903 |
| ETIM 5.0: | EC001821 |
| ETIM 6.0: | EC001821 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | China |
| EAN: | |
| Вес: | 0,14 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
