Продукт
Leuze electronic
50141474
ISS 212MM/44-4E0
Сделать запрос

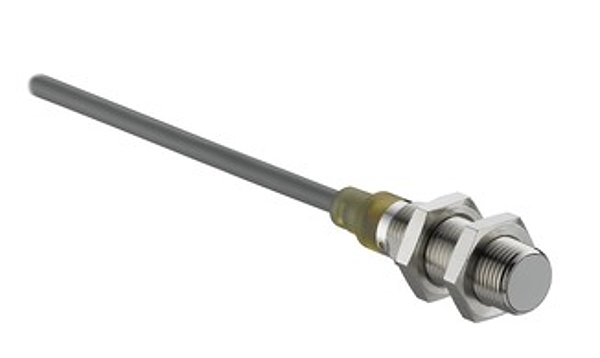

Авторское право на изображение: Leuze electronic
Leuze electronic 50141474
ISS 212MM/44-4E0
ISS 212MM/44-4E0 - Inductive switch
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Технические характеристики
| Series: | 212 |
| Typ. operating range limit Sn: | 4 mm |
| Operating range Sa: | 0 ... 3.24 mm |
| Special version: | Antivalent |
| Protective circuit: | Short circuit protected, Polarity reversal protection, Transient protection |
| Supply voltage UB: | 10 ... 36 V, DC |
| Residual ripple: | 0 ... 10 %, From UB |
| Open-circuit current: | 0 ... 16 mA |
| Temperature drift, max. (in % of Sr): | 19 % |
| Repeatability, max. (in % of Sr): | 10 % |
| Switching hysteresis: | 20 % |
| Number of digital switching outputs: | 2 Piece(s) |
| Voltage type: | DC |
| Switching current, max.: | 200 mA |
| Residual current, max.: | 0.05 mA |
| Voltage drop: | ≤ 2 V |
| Switching element: | Transistor, PNP |
| Switching principle: | NO contact – Antivalent |
| Switching element: | Transistor, PNP |
| Switching principle: | NC contact – Antivalent |
| Switching frequency: | 2,000 Hz |
| Readiness delay: | 50 ms |
| Number of connections: | 1 Piece(s) |
| Function: | Voltage supply, Signal OUT |
| Type of connection: | Cable |
| Cable length: | 2,000 mm |
| Sheathing material: | PVC |
| Cable color: | Gray |
| Number of conductors: | 4 -wire |
| Wire cross section: | 0.25 mm² |
| Design: | Cylindrical |
| Thread size: | M12 x 1 mm |
| Dimension (Ø x L): | 12 mm x 46.8 mm |
| Type of installation: | Embedded |
| Housing material: | Nickel-plated brass |
| Sensing face material: | Plastic, Polybutylene (PBT) |
| Net weight: | 70 g |
| Housing color: | Gray, Silver |
| Type of fastening: | Mounting thread |
| Standard measuring plate: | 12 x 12 mm², Fe360 |
| Type of display: | LED |
| Number of LEDs: | 1 Piece(s) |
| Ambient temperature, operation: | -25 ... 70 °C |
| Ambient temperature, storage: | -30 ... 80 °C |
| Degree of protection: | IP 67 |
| Protection class: | II |
| Certifications: | c UL US |
| Test procedure for EMC in accordance with standard: | EN 61000-4-2, -3, -4, -8 |
| Aluminum: | 0.5 |
| Stainless steel: | 0.7 |
| Copper: | 0.3 |
| Brass: | 0.5 |
| Fe360 steel: | 1 |
| Customs tariff number: | 85365019 |
| eCl@ss 8.0: | 27270101 |
| eCl@ss 9.0: | 27270101 |
| ETIM 5.0: | EC002714 |
| ETIM 6.0: | EC002714 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Litauen |
| EAN: | |
| Вес: | 0,08 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
