50141463
KD PL-M12-5A-P0-050

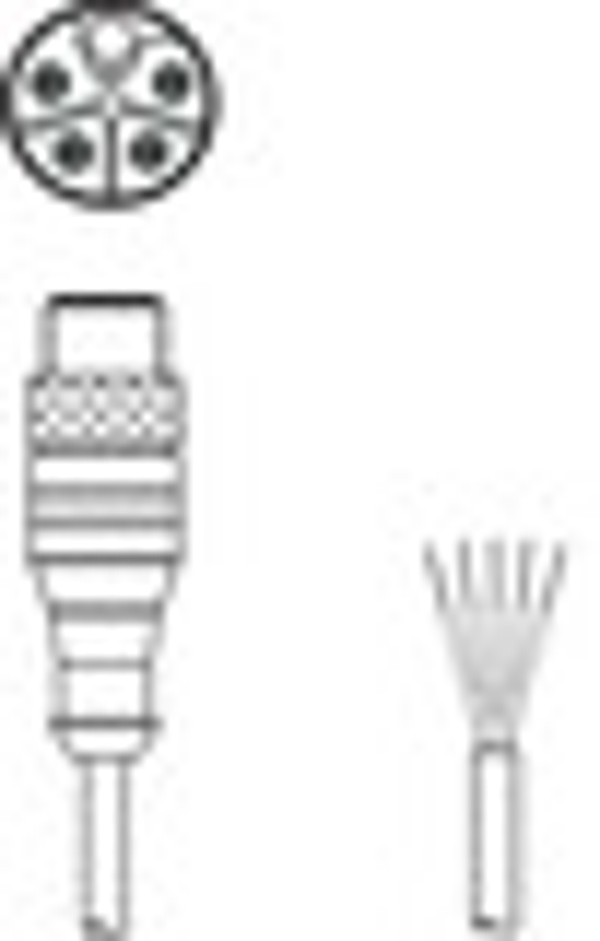

KD PL-M12-5A-P0-050 - Connection cable
Suitable for: | MD 748i |
Operating voltage: | 50 V AC / 60 V DC |
Type of connection: | Connector |
Thread size: | M12 |
Type: | Male |
No. of pins: | 5 -pin |
Encoding: | L-coded |
Version: | Axial |
Number of conductors: | 5 Piece(s) |
Sheathing color: | Gray |
Shielded: | No |
Cable length: | 5,000 mm |
Sheathing material: | PUR |
Suitability for drag chains: | Yes |
Traverse rate: | Max. 3.3 m/s with horiz. traverse path of 5m and and max. acceleration of 5m/s² |
Ambient temperature, operation, flexible use: | -30 ... 90 °C |
Ambient temperature, operation, stationary use: | -40 ... 90 °C |
Degree of protection: | IP 65, IP 67, IP 69K |
Certifications: | c UL US |
Customs tariff number: | 85444290 |
eCl@ss 8.0: | 27279218 |
eCl@ss 9.0: | 27060311 |
ETIM 5.0: | EC001855 |
ETIM 6.0: | EC001855 |
ТН ВЭД: | |
Страна происхождения: | Tschechische Republik |
EAN: | |
Вес: | 0,25 kg |
Длина: | 0,00 m |
Ширина: | 0,00 m |
Высота: | 0,00 m |
