Продукт
Leuze electronic
50141238
DCR 202i FIX-L1-102-R3-P-F001
Сделать запрос
Авторское право на изображение: Leuze electronic

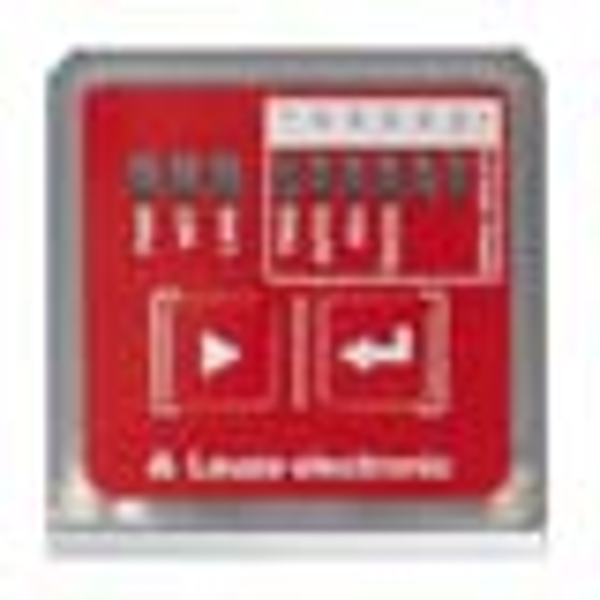

Leuze electronic 50141238
DCR 202i FIX-L1-102-R3-P-F001
DCR 202i FIX-L1-102-R3-P-F001 - Stationary 2D-code reader
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Технические характеристики
| Series: | DCR 200i |
| Chip: | CMOS |
| Special version: | Polarization filter |
| Software functions: | Reading of 1D codes, Reading of 2D codes |
| Code types, readable: | Aztec, 2/5 Interleaved, Codabar, Code 128, Code 32, Code 39, Code 93, Data Matrix Code, EAN 128, EAN 8/13, GS1 Databar, GS1 Databar Omnidirectional, GS1 Databar QR code, GS1 Databar Stacked, PDF417, Pharma Code, QR code, UPC |
| Reading distance: | 50 ... 800 mm |
| Light source: | LED, Red |
| Transmitted-signal shape: | Pulsed |
| Camera resolution, horizontal: | 1,280 px |
| Camera resolution, vertical: | 960 px |
| Modulus size: | 0.35 ... 1 mm |
| Electronic shutter speed: | 0.068 ... 5 ms |
| Camera type: | Monochrome |
| Protective circuit: | Polarity reversal protection, Short circuit protected |
| Supply voltage UB: | 18 ... 30 V, DC |
| Average power consumption: | 8 W |
| Number of digital switching inputs: | 2 Piece(s) |
| Voltage type: | DC |
| Switching voltage: | < 10V high, > 17V low at VIN = 24V |
| Switching principle: | NPN |
| Number of digital switching outputs: | 2 Piece(s) |
| Voltage type: | DC |
| Switching current, max.: | 100 mA |
| Switching element: | Transistor, NPN |
| Switching principle: | GND switching |
| Switching element: | Transistor, NPN |
| Switching principle: | GND switching |
| Type: | Ethernet, RS 232, RS 422 |
| Function: | Process |
| Transmission speed: | 4,800 ... 115,200 Bd |
| Data format: | Adjustable |
| Start bit: | 1 |
| Data bit: | 8 data bits |
| Stop bit: | 1 stop bit |
| Parity: | None |
| Transmission protocol: | |
| Data encoding: | Binary, ASCII |
| Function: | Process |
| Transmission speed: | 4,800 ... 115,200 Bd |
| Data format: | Adjustable |
| Start bit: | 1 |
| Data bit: | 7, 8 data bits |
| Stop bit: | 1, 2 stop bits |
| Parity: | Adjustable |
| Transmission protocol: | Adjustable |
| Data encoding: | ASCII, Binary |
| Architecture: | Server, Client |
| Address assignment: | DHCP, Manual address assignment |
| Transmission speed: | 10 Mbit/s, 100 Mbit/s |
| Function: | Process |
| Switch functionality: | None |
| Transmission protocol: | TCP/IP , UDP |
| Type: | Ethernet |
| Function: | Service |
| Number of connections: | 2 Piece(s) |
| Function: | Voltage supply, Data interface, Signal IN, Signal OUT |
| Type of connection: | Connector |
| Thread size: | M12 |
| Type: | Male |
| Material: | Metal |
| No. of pins: | 12 -pin |
| Encoding: | A-coded |
| Function: | Configuration interface, Data interface |
| Type of connection: | Connector |
| Thread size: | M12 |
| Type: | Female |
| Material: | Metal |
| No. of pins: | 4 -pin |
| Encoding: | D-coded |
| Design: | Cubic |
| Dimension (W x H x L): | 43 mm x 61 mm x 44 mm |
| Housing material: | Metal, Diecast aluminum, PC, Plastic |
| Lens cover material: | Glass with polarization filter |
| Net weight: | 120 g |
| Housing color: | Silver |
| Type of fastening: | Via optional mounting device, Mounting thread |
| Type of display: | LED |
| Number of LEDs: | 10 Piece(s) |
| Type of configuration: | Teach-in, Configuration codes, Via web browser |
| Operational controls: | Button(s) |
| Function of the operational control: | Adjustment mode, Auto-setup, Trigger |
| Ambient temperature, operation: | 0 ... 50 °C |
| Ambient temperature, storage: | -20 ... 70 °C |
| Relative humidity (non-condensing): | 90 % |
| Degree of protection: | IP 67 when in the plugged-in and screwed-down state (EN 60529), IP 69K |
| Protection class: | III |
| Certifications: | c UL US |
| Test procedure for EMC in accordance with standard: | EN 61000-6-2, EN 61000-6-4 |
| Test procedure for continuous shock in accordance with standard: | IEC 60068-2-29, test Eb |
| Test procedure for vibration in accordance with standard: | IEC 60068-2-6, test Fc |
| Customs tariff number: | 84719000 |
| eCl@ss 8.0: | 27280103 |
| eCl@ss 9.0: | 27280103 |
| ETIM 5.0: | EC002999 |
| ETIM 6.0: | EC002999 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Deutschland |
| EAN: | |
| Вес: | 0,27 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
