50139690
LS25C/8X-M8

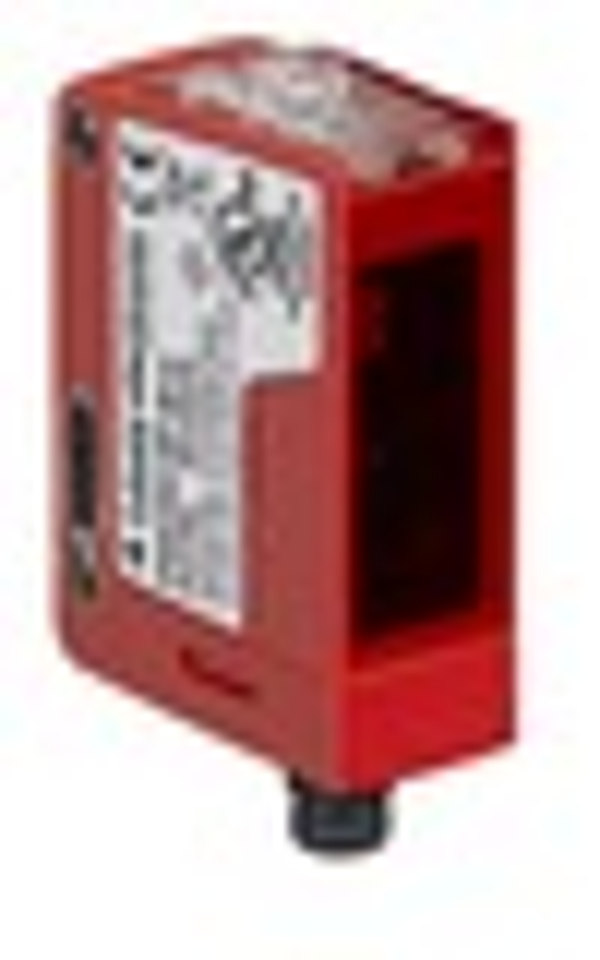

LS25C/8X-M8 - Throughbeam photoelectric sensor transmitter
Series: | 25C |
Operating principle: | Throughbeam principle |
Device type: | Transmitter |
Special version: | Activation input |
Operating range: | 0 ... 25 m |
Operating range limit: | 0 ... 30 m |
Light source: | LED, Red |
Protective circuit: | Polarity reversal protection, Short circuit protected |
Supply voltage UB: | 10 ... 30 V, DC, Incl. residual ripple |
Residual ripple: | 0 ... 15 %, From UB |
Open-circuit current: | 0 ... 20 mA |
Number of activation inputs: | 1 Piece(s) |
Function: | Voltage supply, Signal IN |
Type of connection: | Connector |
Thread size: | M8 |
Material: | PUR |
No. of pins: | 4 -pin |
Dimension (W x H x L): | 15 mm x 42.7 mm x 30 mm |
Housing material: | Plastic, ABS |
Lens cover material: | Plastic |
Net weight: | 22 g |
Type of fastening: | Via optional mounting device, Through-hole mounting with M4 thread |
Compatibility of materials: | ECOLAB |
Ambient temperature, operation: | -40 ... 60 °C |
Degree of protection: | IP 69K, IP 67 |
Protection class: | III |
Certifications: | c UL US |
Standards applied: | IEC 60947-5-2 |
Customs tariff number: | 85365019 |
eCl@ss 8.0: | 27270901 |
eCl@ss 9.0: | 27270901 |
ETIM 5.0: | EC002716 |
ETIM 6.0: | EC002716 |
ТН ВЭД: | |
Страна происхождения: | Deutschland |
EAN: | |
Вес: | 0,03 kg |
Длина: | 0,00 m |
Ширина: | 0,00 m |
Высота: | 0,00 m |
