Продукт
Leuze electronic
50138405
LPS 36.10
Сделать запрос

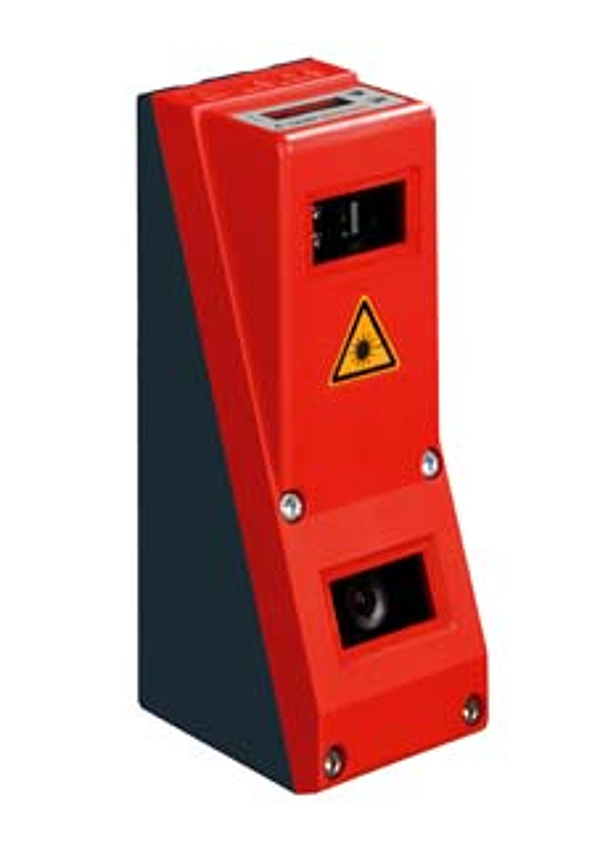

Авторское право на изображение: Leuze electronic
Leuze electronic 50138405
LPS 36.10
LPS 36.10 - Line profile sensor
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Технические характеристики
| Series: | 36 |
| Contains: | LxSsoft configuration software |
| Application: | Object measurement, Contour measurement |
| Special version: | Plastic screen |
| Light source: | Laser, Red |
| Laser class: | 2M, IEC/EN 60825-1:2007 |
| X-axis measurement range: | 150 ... 600 mm |
| Measurement range z-axis: | 200 ... 800 mm |
| Resolution: | X-axis: 1 … 1,5 mm, relative to measurement distance, Y-axis: 1 … 3 mm, relative to measurement distance |
| Repeatability of Z-axis, relative to measurement distance: | ≤ 0.5 % |
| Measurement time: | 10ms |
| Linearity of Z-axis, relative to measurement distance: | ± 1,0% |
| Black/white behavior: | 1 %, 6 … 90% diffuse reflectance |
| Supply voltage UB: | 18 ... 30 V, DC |
| Number of activation inputs: | 1 Piece(s) |
| Number of digital switching outputs: | 2 Piece(s) |
| Switching element: | Transistor, Push-pull |
| Function: | Operational readiness |
| Switching element: | Transistor, Push-pull |
| Function: | Cascading |
| Type: | Ethernet |
| Number of connections: | 3 Piece(s) |
| Function: | Signal IN, Signal OUT, Voltage supply |
| Type of connection: | Connector |
| Thread size: | M12 |
| Type: | Male |
| Material: | Metal |
| No. of pins: | 8 -pin |
| Encoding: | A-coded |
| Function: | Data interface, Configuration interface |
| Type of connection: | Connector |
| Thread size: | M12 |
| Type: | Female |
| Material: | Metal |
| No. of pins: | 4 -pin |
| Encoding: | D-coded |
| Function: | Encoder |
| Type of connection: | Connector |
| Thread size: | M12 |
| Type: | Female |
| Material: | Metal |
| No. of pins: | 8 -pin |
| Encoding: | A-coded |
| Function: | Not used (dummy plug) |
| Type of connection: | Connector |
| Thread size: | M12 |
| Type: | Female |
| Material: | Metal |
| No. of pins: | 4 -pin |
| Encoding: | D-coded |
| Dimension (W x H x L): | 56 mm x 160 mm x 74 mm |
| Housing material: | Plastic, Aluminum, Metal |
| Lens cover material: | Plastic |
| Net weight: | 620 g |
| Ambient temperature, operation: | -30 ... 50 °C |
| Ambient temperature, storage: | -30 ... 70 °C |
| Degree of protection: | IP 67 |
| Protection class: | III, VDE |
| Certifications: | c UL US |
| Standards applied: | IEC 60947-5-2 |
| Customs tariff number: | 90318020 |
| eCl@ss 8.0: | 27280190 |
| eCl@ss 9.0: | 27280190 |
| ETIM 5.0: | EC001825 |
| ETIM 6.0: | EC001825 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Deutschland |
| EAN: | |
| Вес: | 0,72 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
