50137435
YV U-DDS-25-25-25-X01

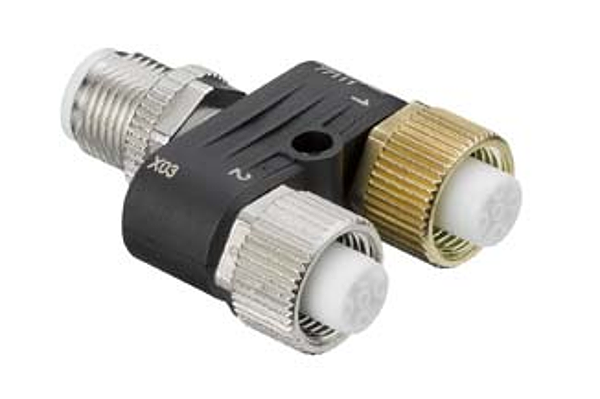

YV U-DDS-25-25-25-X01 - Y distribution box
Order guide: | Please observe the circuit diagram acc. to the data sheet |
Number of connections: | 3 Piece(s) |
Type of connection: | Connector |
Thread size: | M12 |
Type: | Female |
No. of pins: | 5 -pin |
Encoding: | A-coded |
Version: | Axial |
Type of connection: | Connector |
Thread size: | M12 |
Type: | Female |
No. of pins: | 5 -pin |
Encoding: | A-coded |
Version: | Axial |
Type of connection: | Connector |
Thread size: | M12 |
Type: | Male |
No. of pins: | 5 -pin |
Encoding: | A-coded |
Version: | Axial |
Shielded: | No |
Width across flats: | 13 mm |
Material: | Metal |
Ambient temperature, operation: | -25 ... 85 °C |
Degree of protection: | IP 67 |
Customs tariff number: | 85369010 |
eCl@ss 8.0: | 27069190 |
eCl@ss 9.0: | 27069190 |
ETIM 5.0: | EC001578 |
ETIM 6.0: | EC001578 |
ТН ВЭД: | |
Страна происхождения: | Deutschland |
EAN: | |
Вес: | 0,03 kg |
Длина: | 0,00 m |
Ширина: | 0,00 m |
Высота: | 0,00 m |
