50137307
CR100M0/UB-1800-S6

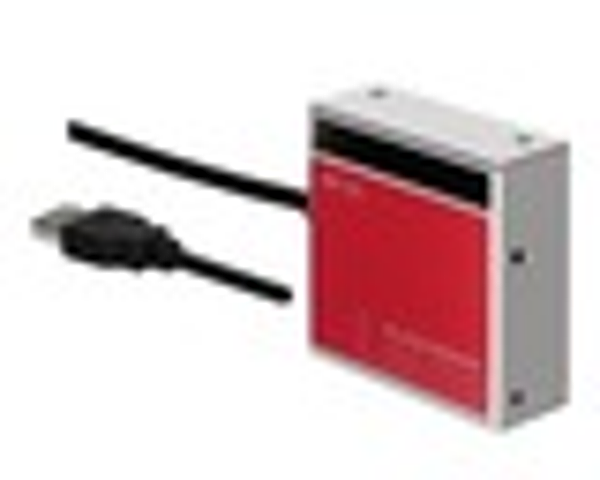

CR100M0/UB-1800-S6 - Stationary bar code reader
Series: | CR100 |
Functions: | I/O, Alignment mode, LED indicator, Multiple read / MultiScan, Output format selectable, Reading gate control |
Code types, readable: | EAN 128, 2/5 Interleaved, Codabar, Code 128, Code 39, Code 93, EAN Addendum, EAN/UPC |
Scanning rate, typical: | 700 scans/s |
Bar codes per reading gate, max. number: | 63 Piece(s) |
Reading distance: | 15 ... 67 mm |
Light source: | LED, Red |
Modulus size: | 0.15 ... 0.5 mm |
Reading method: | Line scanner with deflecting mirror |
Scanning rate: | 700 scans/s |
Beam deflection: | Via prism |
Light beam exit: | Lateral |
Supply voltage UB: | 4.9 ... 5.4 V, DC |
Current consumption, max.: | 250 mA |
Number of digital switching inputs: | 1 Piece(s) |
Number of digital switching outputs: | 1 Piece(s) |
Type: | RS 232 |
Function: | Process |
Type: | RS 232 |
Function: | Service |
Number of connections: | 1 Piece(s) |
Function: | Signal OUT, Data interface, Signal IN, Voltage supply |
Type of connection: | Cable with USB-connector |
Cable length: | 1,800 mm |
Connector type: | USB 2.0 Standard-A |
Design: | Cubic |
Dimension (W x H x L): | 55 mm x 52 mm x 20 mm |
Housing material: | Metal, Sheet metal plate shaped |
Lens cover material: | Plastic |
Net weight: | 200 g |
Housing color: | Silver, Red |
Type of fastening: | Fastening on back, Side mounting with thread |
Type of display: | LED |
Number of LEDs: | 1 Piece(s) |
Ambient temperature, operation: | 0 ... 45 °C |
Ambient temperature, storage: | -25 ... 60 °C |
Relative humidity (non-condensing): | 90 % |
Degree of protection: | IP 40 |
Protection class: | III |
Certifications: | cUR us |
Test procedure for EMC in accordance with standard: | EN 61000-4-2, -3, -4, -6, EN 55022, EN 55024 |
Customs tariff number: | 84719000 |
eCl@ss 8.0: | 27280102 |
eCl@ss 9.0: | 27280102 |
ETIM 5.0: | EC002550 |
ETIM 6.0: | EC002550 |
