Leuze electronic 50137177
LS3C/8X-200-M8

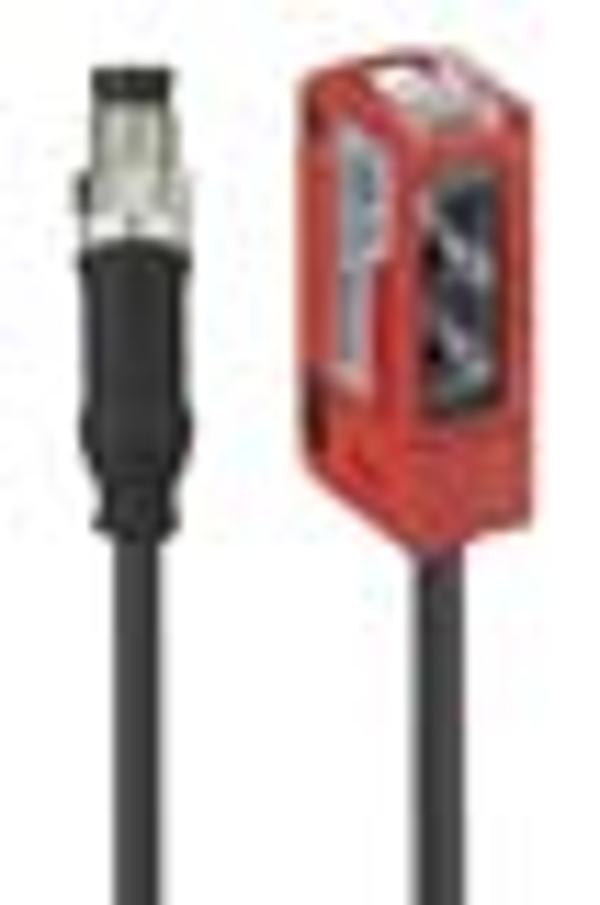

LS3C/8X-200-M8 - Throughbeam photoelectric sensor transmitter
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Технические характеристики
| Series: | 3C |
| Operating principle: | Throughbeam principle |
| Device type: | Transmitter |
| Special version: | Activation input |
| Operating range: | 0.05 ... 8.5 m |
| Operating range limit: | 0.05 ... 10 m |
| Light source: | LED, Red |
| Light spot size [at sensor distance]: | 4 mm [100 mm] |
| Protective circuit: | Short circuit protected, Polarity reversal protection |
| Supply voltage UB: | 10 ... 30 V, DC, Incl. residual ripple |
| Residual ripple: | 0 ... 15 %, From UB |
| Open-circuit current: | 0 ... 20 mA |
| Number of activation inputs: | 1 Piece(s) |
| Function: | Voltage supply, Signal IN |
| Type of connection: | Cable with connector |
| Cable length: | 200 mm |
| Thread size: | M8 |
| Material: | Metal |
| No. of pins: | 4 -pin |
| Dimension (W x H x L): | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material: | Plastic, PC-ABS |
| Lens cover material: | Plastic / PMMA |
| Net weight: | 20 g |
| Type of fastening: | Via optional mounting device, Through-hole mounting |
| Compatibility of materials: | ECOLAB |
| Ambient temperature, operation: | -40 ... 60 °C |
| Degree of protection: | IP 69K, IP 67 |
| Protection class: | III |
| Certifications: | c UL US |
| Standards applied: | IEC 60947-5-2 |
| Customs tariff number: | 85365019 |
| eCl@ss 8.0: | 27270901 |
| eCl@ss 9.0: | 27270901 |
| ETIM 5.0: | EC002716 |
| ETIM 6.0: | EC002716 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Deutschland |
| EAN: | |
| Вес: | 0,02 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
