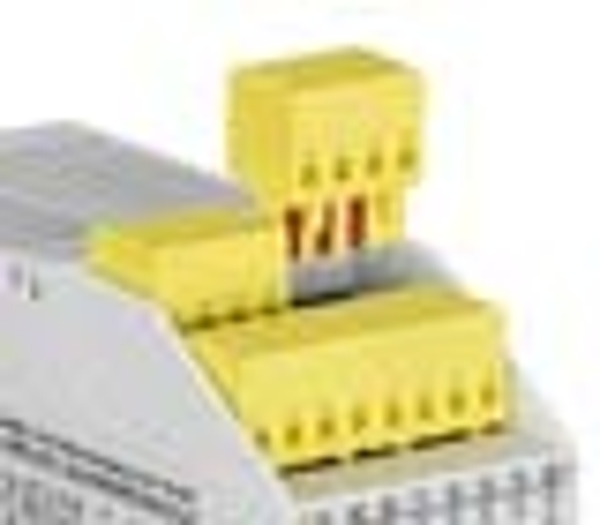

50132987
MSI 420-03
MSI 420-03 - Safety control
Series: | MSI 420 |
Application: | Monitoring of safety functions |
Number of safe I/Os: | 16 IN, 4 OUT, 4 programmable I/O |
Functions: | Configurable safety control, Additional I/O extensions available (optional), Configuration via MSI.designer software, Ethernet interface, Removable program memory (must be ordered separately, part no. 50132996), Transfer of diagnostic data via external fieldbus modules, e.g. MSI-FB-PROFIBUS (optional), USBmini interface |
SIL: | 3, IEC 61508 |
SILCL: | 3, IEC/EN 62061 |
Performance Level (PL): | Up to and including e, EN ISO 13849-1 |
PFHD: | 0.0000000043 per hour |
Mission time: | 20 years, EN ISO 13849-1 |
Category: | 4, EN ISO 13849 |
Supply voltage UB: | 24 V, DC, -30 ... 25 % |
Power consumption, max.: | 3.3 W |
Number of outputs: | 8 Piece(s) |
Max. number of integrated digital outputs: | 8 Piece(s) |
Type of digital output: | Transistor |
Short circuit protection, outputs: | Yes |
Min. voltage permitted at the output: | 16.2 V |
Max. voltage permitted at the output: | 30 V |
Output current: | 4 A |
Number of inputs: | 16 Piece(s) |
Voltage permitted at the input: | 30 V |
Max. rated control supply voltage at DC: | 30 V |
Min. rated control supply voltage at DC: | 15.6 V |
Input current at signal 1: | 2.3 mA |
Type: | Internal bus (SBUS+) |
Type: | Ethernet, USB |
Function: | Configuration via software |
Function: | Configuration via software |
Number of connections: | 3 Piece(s) |
Function: | Voltage supply, Signal IN, Signal OUT |
Type of connection: | Terminal |
Type of terminal: | Spring-cage terminal |
No. of pins: | 32 -pin |
Function: | Configuration interface |
Type of connection: | USB |
Connector type: | USB 2.0 Mini-A |
Function: | BUS OUT |
Type of connection: | RJ45 |
Connection cross sections: | 2 x 0.2 to 1.5 mm², wire, 2 x 0.2 to 1.5 mm², wire, 2 x 0.25 to 1.5 mm², wire with wire-end sleeve (pressed in trapezium shape) |
Dimension (W x H x L): | 45 mm x 107 mm x 121 mm |
Net weight: | 290 g |
Housing color: | Gray |
Type of fastening: | Snap-on mounting |
Ambient temperature, operation: | -25 ... 65 °C |
Type of configuration: | Software |
Ambient temperature, operation: | -25 ... 65 °C |
Degree of protection: | IP 20 |
Relative humidity (non-condensing): | 10 ... 95 % |
Certifications: | TÜV Rheinland, c UL US |
Vibration resistance: | 5 ... 150 Hz |
Test procedure for oscillation in accordance with standard: | EN 60068-2-6 |
Vibration resistance: | 5 ... 150 Hz |
Test procedure for oscillation in accordance with standard: | EN 60068-2-6 |
Shock resistance, continuous shock: | 10 g, 16 ms, EN 60068-2-29 |
eCl@ss 8.0: | 27243101 |
Customs tariff number: | 85371091 |
ETIM 5.0: | EC002538 |
ETIM 6.0: | EC002538 |
ETIM 5.0: | EC002538 |
ETIM 6.0: | EC002538 |
ТН ВЭД: | |
Страна происхождения: | Deutschland |
EAN: | |
Вес: | 0,37 kg |
Длина: | 0,00 m |
Ширина: | 0,00 m |
Высота: | 0,00 m |
