50104139
VSU 12/4.5

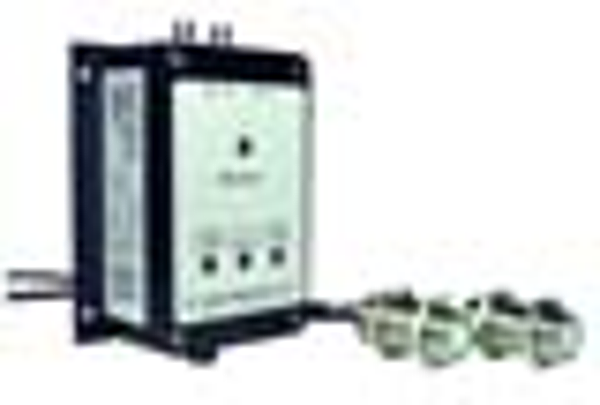

VSU 12/4.5 - Splice inspection amplifier
Series: | 12 |
Principle of physics: | Ultrasonics |
Application: | Splice inspections |
Supply voltage UB: | 10 ... 30 V, DC |
Number of digital switching outputs: | 2 Piece(s) |
Type: | Digital switching output |
Switching element: | Transistor, PNP |
Function: | Splice detected |
Switching element: | Transistor, PNP |
Function: | Object detected |
Switching frequency: | 200 Hz |
Type of connection: | Connector |
Thread size: | M12 |
Material: | Metal |
No. of pins: | 5 -pin |
Design: | Cubic |
Dimension (W x H x L): | 84 mm x 37 mm x 98 mm |
Housing material: | Metal, Aluminum |
Net weight: | 400 g |
Type of display: | LED |
Ambient temperature, operation: | 0 ... 50 °C |
Degree of protection: | IP 65 |
Protection class: | III |
Certifications: | c UL US |
Standards applied: | IEC 60947-5-2 |
Customs tariff number: | 85365019 |
eCl@ss 8.0: | 27272890 |
eCl@ss 9.0: | 27272890 |
eCl@ss 10.0: | 27272890 |
ETIM 5.0: | EC001849 |
ETIM 6.0: | EC001849 |
ТН ВЭД: | |
Страна происхождения: | Deutschland |
EAN: | |
Вес: | 0,34 kg |
Длина: | 0,00 m |
Ширина: | 0,00 m |
Высота: | 0,00 m |
