Eaton 034209

SKA255-I44

Изолированный щит с шинной системой In = 250A , 5П

Описание

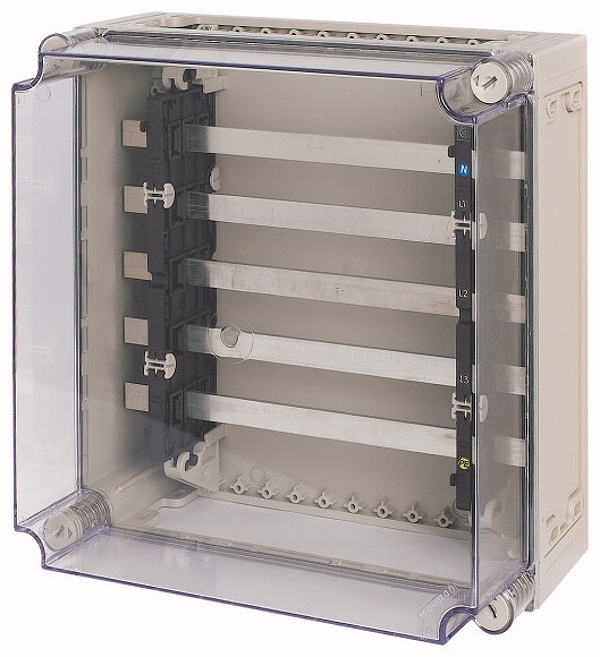

EL-Nummer (Norway). 2502183. Busbar enclosure, material characteristic polycarbonate, impact-resistant, patented cover fasteners with integrated overpressure compensation, top and bottom with full area knockouts for FL4.. flange, enclosure side plates closed, full-area knockout , sealable cover fasteners, RAL 7035, grey (base), transparent smoky, (cover), degree of protection IP65 (enclosure), IP65 (KST cable entries from below), IP64 (KST cable entries from above), IP00 (Cable entry open), rated operational current Ie=250A, type of conductor L1, L2, L3, PE, N, interval between phase centers=50mm
