EPP9001-0060
EPP9001-0060 | EtherCAT P/EtherCAT connector with power transmission

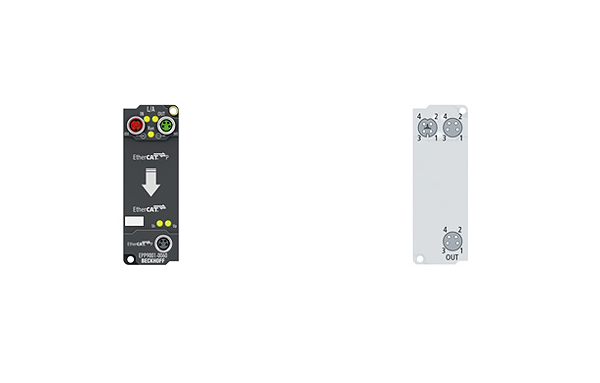

The EPP9001-0060 EtherCAT P Box converts the incoming EtherCAT P signal (red M8 socket, EtherCAT-P-coded) into an EtherCAT signal (green M8 socket). In addition, the voltage output from the U. S, and U. P, voltages can be found on the EtherCAT P Box (black M8 socket). The EPP9001-0060 is an active EtherCAT device, i.e. it appears in the EtherCAT process image of the EtherCAT master, e.g. TwinCAT.
Task within EtherCAT system: | converter from EtherCAT P to EtherCAT + power |
Number of channels: | IN: 1 x EtherCAT P, OUT: 1 x EtherCAT |
Nominal voltage: | 24 V DC (-15 %/+20 %) |
Total current: | feed-in max. 3 A per US and UP |
Current consumption from US: | typ. 100 mA |
Power supply connection: | downstream connection: 1 x M8 female socket, 4-pin |
Bus interface: | 1 x M8 socket, shielded, screw type, EtherCAT-P-coded, 1 x M8 socket, shielded, screw type |
Protocol: | EtherCAT P/EtherCAT |
Weight: | approx. 90 g |
Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 65/66/67 (conforms to EN 60529)/variable |
Approvals/markings: | CE, UL |
