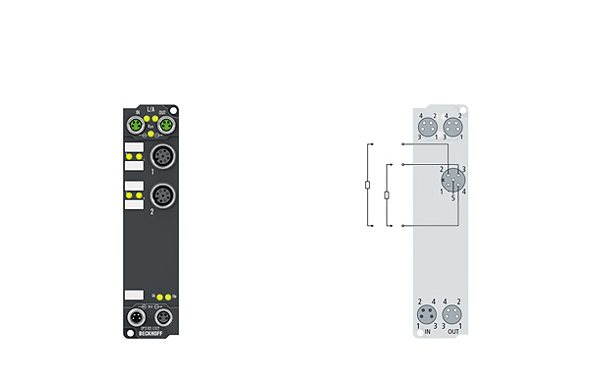

EP3182-1002
EP3182-1002 | 2-channel analog input ±10 V or 0/4…20 mA, parameterisable, single-ended, 16 bit, 2 digital control outputs, 24 V DC, short-circuit-proof
The EP3182 EtherCAT Box has two analog inputs which can be individually parameterised, so that they process signals either in the -10/0 to +10 V or the 0/4 to 20 mA range. The voltage or input current is digitised with a resolution of 16 bits, and is transmitted (electrically isolated) to the higher-level automation device. The two input channels are single-ended inputs and possess a common, internal ground potential. The input filter and therefore the conversion times are configurable in a wide range. If required, the inputs can be scaled differently, and automatic limit monitoring is also available. EtherCAT is used for parameterisation purposes. The parameters are stored in the module.
Number of channels: | 2 analog inputs (single-ended), 2 digital outputs |
Connection method: | M12, screw type |
Protocol: | EtherCAT |
Bus interface: | 2 x M8 socket, shielded, screw type |
Signal type: | -10/0…+10 V | 0/4…20 mA |
Internal resistance: | > 200 kΩ | typ. 85 Ω + diode voltage |
Common-mode voltage UCM: | max. 35 V |
Resolution: | 16 bit (incl. sign) |
Measuring error: | < ±0.3 % (relative to full scale value) |
Input filter limit frequency: | 5 kHz |
Conversion time: | ~ 100 µs |
Nominal voltage: | 24 V DC (-15 %/+20 %) |
Input filter: | configurable |
Max. output current: | 2 mA (short-circuit proof) per channel |
Sensor supply: | from load supply voltage UP |
Current consumption from US: | 120 mA |
Power supply connection: | feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin |
Bit width in the process image: | 4 x 16 bit input, 4 x 8 bit status |
Electrical isolation: | control voltage/fieldbus: yes |
Special features: | current or voltage parameterisable, 2 digital outputs (sink/source type) |
Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 65/66/67 (conforms to EN 60529)/variable |
Approvals: | CE, UL |
