EM3712

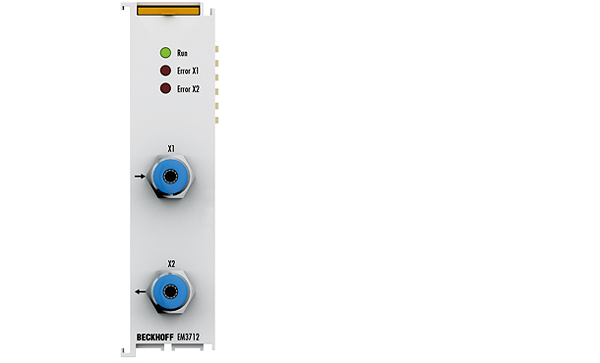

EM3712 | Pressure measuring terminal
The EtherCAT Terminal system is extended with pressure measuring terminals for recording differential and relative pressures. In a similar way to electrical signal acquisition, an EtherCAT Terminal with 24 mm width is used for pressure measurement. The compact design and simple connection system supports space-saving and quick installation. Additional measuring instruments are unnecessary.
Technology: | relative pressure measurement |
Number of inputs: | 2 |
Measuring error: | 3 % (relative to full scale value) |
Measuring range: | -1000…+1000 hPa (-1…+1 bar) |
Max. overload: | 5000 hPa (5 bar) |
Resolution: | 1 hPa (1 mbar) per digit |
Measuring speed: | 4 ms typ. |
Current consumption E-bus: | typ. 70 mA |
Current consumption power contacts: | – (no power contacts) |
Bit width in the process image: | 4 byte input/output per channel |
Medium: | non-aggressive gases |
Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
Relative humidity: | 95 %, no condensation |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 20/variable |
Approvals: | CE, UL |
