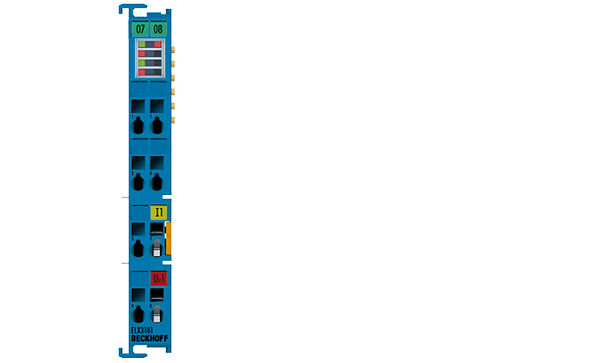

ELX3181 | 1-channel analog input terminal 4…20 mA, single-ended, 16 bit, HART, Ex i
Описание
The ELX3181 analog input terminal allows the direct connection of intrinsically safe HART-capable field devices located in hazardous areas classified Zone 0/20 or 1/21. It supplies measuring transducers located in the field and transmits their analog measuring signals electrically isolated to the automation device. The HART protocol (Highway Addressable Remote Transducer) enables two-way communication through digital data transfer via the analog 4…20 mA wiring. The TwinCAT FDT container enables the integration of field device DTMs into TwinCAT Engineering, so that the device configuration and diagnostic functions are available directly within the development environment. The EtherCAT Terminal indicates the signal state by means of light emitting diodes. Error LEDs signal overload and wire breakage, in addition to which LEDs provide information about the state of the HART communication and indicate any communication errors.
Технические характеристики
| Technology: | intrinsically safe sensors with HART support (version 7) |
| Signal current: | 4…20 mA |
| Number of inputs: | 1 (single-ended) |
| Connection method: | 2-wire |
| Resolution: | 16 bit (incl. sign) |
| Measuring error: | < ±0.3 % (relative to full scale value) |
| Internal resistance: | typ. 250 Ω |
| Input filter limit frequency: | 25 Hz |
| Conversion time: | typ. 1 ms |
| Supply voltage electronics: | 24 V DC (via power contacts), ELX9560 power supply |
| Current consumption power contacts: | typ. 15 mA + load |
| Current consumption E-bus: | typ. 85 mA |
| Distributed clocks: | yes |
| Special features: | standard and compact process image, activatable FIR/IIR filters, limit value monitoring, NE43 NAMUR |
| Weight: | approx. 60 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/see documentation |
| Approvals/markings: | CE, UL, ATEX, IECEx, cFMus |
| Ex-Marking: | ATEX: II 3(1)G Ex ec [ia Ga] IIC T4 Gc II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I IECEx: Ex ec [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I cFMus: AIS Class I, II, III, Division 1, Groups A thru G Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx nA [ia Ga] IIC T4 Gc Class I, Zone 2, AEx ec [ia Ga] IIC T4 Gc [AEx ia Da] IIIC T4 |
