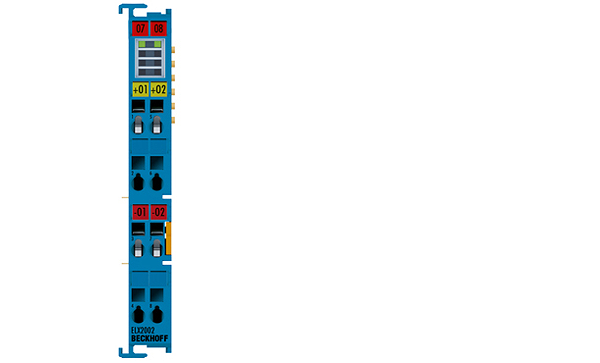

Beckhoff ELX2002
ELX2002 | 2-channel digital output terminal 24 V DC, 45 mA, Ex i
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The ELX2002 digital output terminal enables the direct connection of intrinsically safe actuators located in hazardous areas classified Zone 0/20 or 1/21. The ELX2002 supplies an output voltage of 24 V DC and a maximum output current of 45 mA per channel, total current is 80 mA. The signal state of the EtherCAT Terminal is indicated by a light emitting diode.
Технические характеристики
| Technology: | intrinsically safe actuators |
| Connection technology: | 2-wire |
| Number of outputs: | 2 |
| Rated load voltage: | 24 V DC, Ri = 254 Ω |
| Load type: | ohmic, inductive, capacitive |
| Supply voltage electronics: | 24 V DC (via power contacts), ELX9560 power supply |
| Max. output current: | 45 mA per channel, ∑ 80 mA |
| Current consumption power contacts: | typ. 10 mA + load |
| Current consumption E-bus: | typ. 45 mA |
| Weight: | approx. 55 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/see documentation |
| Approvals/markings: | CE, UL, ATEX, IECEx, cFMus |
| Ex-Marking: | ATEX: II 3(1)G Ex ec [ia Ga] IIC T4 Gc II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I IECEx: Ex ec [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I cFMus: AIS Class I, II, III, Division 1, Groups A thru G Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx nA [ia Ga] IIC T4 Gc Class I, Zone 2, AEx ec [ia Ga] IIC T4 Gc [AEx ia Da] IIIC T4 |
