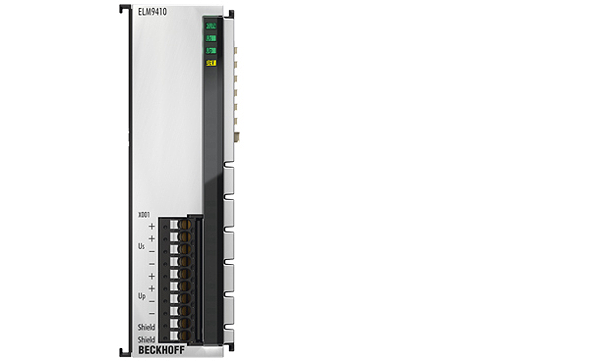

ELM9410 | Power supply terminal for refreshing the E-bus, with diagnostics
The ELM9410 power supply terminal is used to increase the E-bus current. The exchange of data between EtherCAT Couplers and the connected EtherCAT Terminals takes place over the E-bus. Each EtherCAT Terminal requires a certain amount of current from the E-bus (see technical data at the respective terminal: “Current consumption E-bus“). This current is fed into the E-bus by the power supply unit of the respective EtherCAT Coupler. In configurations with a large number of EtherCAT Terminals, the ELM9410 can be used to increase the current supply to the E-bus by 2 A.
Technology: | power supply terminal |
Short-circuit proof: | yes |
Input voltage: | 24 V DC |
Input current: | typ. 70 mA + (E-bus/4) |
Power supply: | 24 V DC (-15 %/+20 %) |
Output voltage: | 5 V for E-bus supply |
Output current: | 2 A |
Current consumption E-bus: | – |
Current consumption from US: | 50 mA + (∑ E-bus current/4) |
Current consumption from UP: | 50 mA + load |
Current supply E-bus: | 2000 mA |
Insulation voltage input/output: | 500 V (E-bus/US/UP) |
Power contacts: | max. 24 V DC/max. 2 A |
Diagnostics in the process image: | yes |
Special features: | electrically isolated output voltages, reverse polarity protection, diagnostics of supply and output voltages |
Weight: | approx. 450 g |
Operating/storage temperature: | 0…+60 °C/-25…+85 °C |
Relative humidity: | 95 %, no condensation |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
Electrical isolation: | 500 V (E-bus/field potential) |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 20/variable |
Approvals/markings: | CE |
