EL9540
EL9540 | System terminal, surge filter and field supply

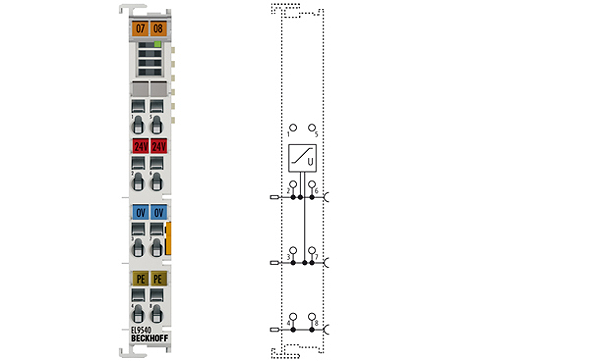

The EL9540 system terminal contains an overvoltage filter for the 24 V field supply. The filter protects the EtherCAT Terminal from line-bound surge voltages that can occur due to high-energy, dynamic disturbances such as switching overvoltages at inductive consumers or indirect lightning strikes at the supply lines.
Technology: | surge filter field supply |
Nominal voltage: | 24 V (-15 %/+20 %) |
Surge filter field supply: | yes |
Surge filter system supply: | – |
Rated current field supply: | ≤ 10 A |
Rated current system supply: | – |
PE connection: | yes |
Electrical isolation: | 500 V (E-bus/field potential) |
Diagnostics: | – |
Weight: | approx. 50 g |
Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 20/variable |
Pluggable wiring: | for all ESxxxx terminals |
Approvals: | CE, UL, Ex |
