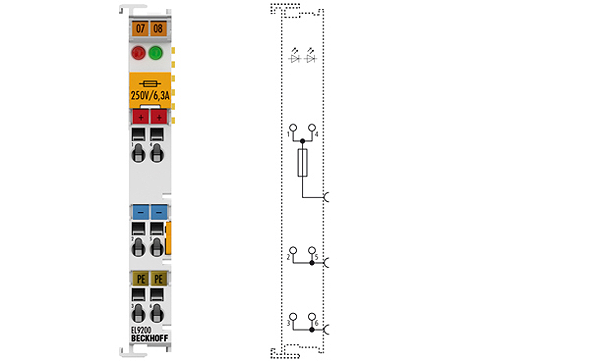

Beckhoff EL9200
EL9200 | Potential supply terminal, 24 V DC, with fuse
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EL9200 power feed terminal makes it possible to set up various potential groups with the standard voltage of 24 V DC.
Технические характеристики
| Technology: | potential supply terminal with fuse |
| Current load: | ≤ 10 A |
| Power LED: | green |
| Defect LED: | red |
| Renewed infeed: | yes |
| Current consumption E-bus: | – |
| Nominal voltage: | 24 V DC |
| Integrated fine-wire fuse: | …6.3 A |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Diagnostics in the process image: | – |
| Reported to E-bus: | – |
| PE contact: | yes |
| Shield connection: | – |
| Connection facility to additional power contact: | 1 |
| Bit width in the process image: | 0 |
| Electrical connection to DIN rail: | – |
| Housing width: | 12 mm |
| Side by side mounting on EtherCAT Terminals with power contact: | yes |
| Side by side mounting on EtherCAT Terminals without power contact: | yes |
| Weight: | approx. 50 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Approvals/markings: | CE, UL, ATEX |
| Ex marking: | II 3 G Ex nA IIC T4 Gc |
