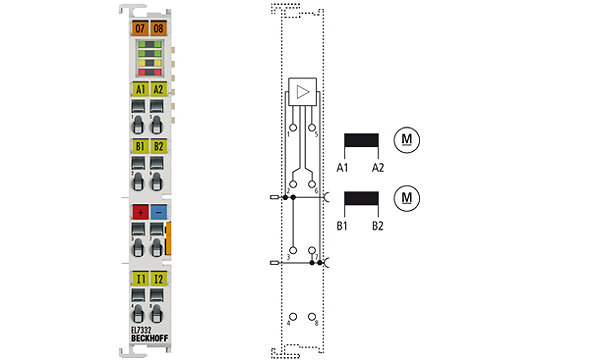

Авторское право на изображение: Beckhoff
Beckhoff EL7332
EL7332 | 2-channel DC motor output stage 24 V DC, 1 A
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EL7332 EtherCAT Terminal enables direct operation of two DC motors. It is galvanically isolated from the E-bus. The speed is preset by a 16 bit value from the automation unit. The output stage is protected against overload and short-circuit. The EtherCAT Terminal has two channels that indicate their signal state via light emitting diodes. The LEDs enable quick local diagnosis.
Технические характеристики
| Technology: | direct motor connection |
| Number of outputs: | 2 |
| Number of channels: | 2 DC motors, 2 digital inputs |
| Rated load voltage: | 24 V DC (-15 %/+20 %) |
| Load type: | DC brush motors, inductive |
| Nominal voltage: | 24 V DC (-15 %/+20 %) |
| Max. output current: | 2 x 1 A |
| Performance increase: | Yes, through ZB8610 fan cartridge |
| output current with ZB8610: | max. 3.0 A (overload- and short-circuit-proof) |
| PWM clock frequency: | 32 kHz with 180° phase shift each |
| Duty factor: | 0…100 % (voltage-controlled) |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Current consumption power contacts: | typ. 40 mA + motor current |
| Bit width in the process image: | 2 x 16 bit status, 2 x 16 bit control, 2 x 16 bit output |
| Current consumption E-bus: | typ. 140 mA |
| Distributed clocks: | yes |
| Control resolution: | max. 10 bits current, 16 bits speed |
| Special features: | travel distance control |
| Weight: | approx. 50 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/see documentation |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals: | CE, UL |
