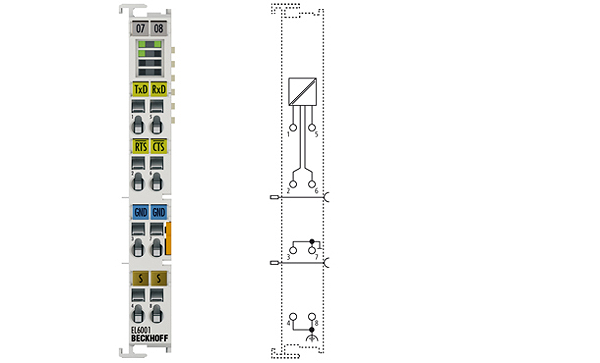

EL6001
EL6001 | Serial interface RS232
The EL6001 serial interface enables the connection of devices with RS232 interface and operates in conformity with the CCITT V.28/DIN 66 259-1 standards. The device connected to the EL6001 EtherCAT Terminal communicates with the automation device via the coupler. The active communication channel operates independently of the higher-level bus system in full duplex mode at up to 115.2 kbaud. The RS232 interface guarantees high immunity to interference through electrically isolated signals.
Technology: | terminal contact |
Data transfer channels: | 2 (1/1), TxD and RxD, full duplex |
Data transfer rates: | 2,400…115,200 baud; default: 9,600 baud, 8 data bits, no parity and one stop bit |
Bit distortion: | < 3 % |
Line impedance: | – |
Cable length: | max. 15 m |
Interfaces: | 1 x RS232 |
Providing external supply: | – |
Power supply: | via the E-bus |
Electrical isolation: | 500 V (E-bus/signal voltage) |
Data buffer: | 864 bytes receive buffer, 128 bytes transmit buffer |
Bit width in the process image: | 22 x 8 bit input, 22 x 8 bit output, 16 bit control, 16 bit status |
Configuration: | no address setting, configuration via the controller |
Current consumption E-bus: | typ. 120 mA |
Weight: | approx. 55 g |
Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
Relative humidity: | 95 %, no condensation |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 20/variable |
Pluggable wiring: | for all ESxxxx terminals |
Approvals: | CE, UL, Ex |
