EL5101-0090
EL5101-0090 | TwinSAFE SC: Incremental encoder interface

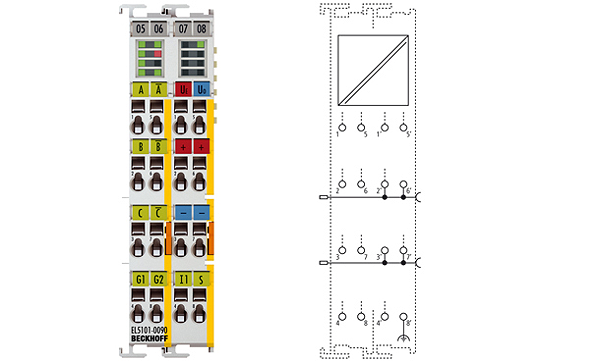

The EL5101-0090 EtherCAT Terminal allows direct connection of incremental encoders with differential inputs (RS422). A 32/16 bit counter with a quadrature decoder and a 32/16 bit latch for the zero pulse can be read, set or enabled. Interval or frequency measurement are possible. The gate input allows the counter to be halted. The counter state is taken over with a rising edge at the latch input.
Technology: | incremental encoder interface RS422 |
Encoder type: | Incremental, differential (RS422) |
Number of channels: | 1 |
Encoder connection: | A, A (inv), B, B (inv), C,C (inv), differential inputs (RS422); status input 5 V DC; gate/latch input 24 V DC |
Encoder operating voltage: | 5 V DC/max. 0.5 A |
Encoder output current: | 0.5 A |
Counter: | 1 x 16/32 bit switchable |
Input frequency: | max. 4 million increments/s (with 4-fold evaluation) |
Quadrature decoder: | 4-fold evaluation |
Zero-pulse latch: | 32 or 16 bits |
Commands: | read, set, enable |
Input signal: | difference signal (RS422), single-ended possible |
Supply voltage: | 24 V DC (-15 %/+20 %) |
Nominal voltage: | 24 V DC at power contact |
Resolution: | 1/256 bit microincrements |
Bit width in the process image: | 1 x 32 bit input, 1 x 16 bit output, 8 bit control, 8 bit status |
Current consumption power contacts: | typ. 100 mA + load |
Current consumption E-bus: | typ. 130 mA |
Distributed clocks: | yes |
Special features: | TwinSAFE SC, wire breakage detection, latch and gate function, period duration and frequency measurement, microincrements, time-stamping of edges, filters |
Weight: | approx. 100 g |
Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
Relative humidity: | 95 %, no condensation |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 20/variable |
Approvals: | CE, UL, Ex |
