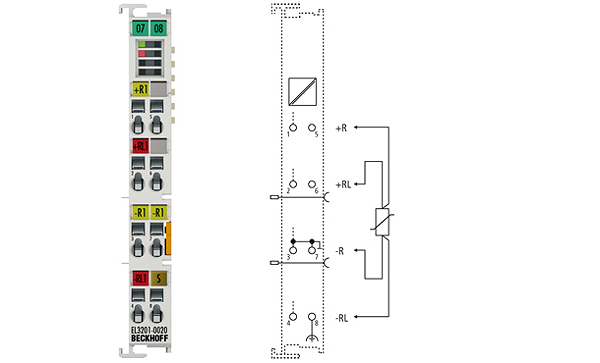

EL3201-0020 | 1-channel input terminals PT100 (RTD) for 4-wire connection, high-precision, with calibration certificate
Описание
The analog input terminal EL3201-0020 enables direct connection of resistance sensors. A microprocessor handles linearisation across the whole temperature range, which is freely selectable. The EtherCAT Terminal’s standard settings are: resolution 0.01 °C in the temperature range of PT100 sensors in 4-wire connection. The EtherCAT Terminal indicates its signal state by means of light emitting diodes. Sensor malfunctions such as broken wires are indicated by error LEDs. The EL3201-0020 has a precision of 0.1 °C at 40 °C ambient temperature. The terminal can also be operated with 2- or 3-wire connection and with other sensors than PT100. The maximum accuracy is achieved in 4-wire operation with PT100 sensors.
Технические характеристики
| Number of inputs: | 1 |
| Power supply: | via the E-bus |
| Distributed clocks: | – |
| Input filter limit frequency: | typ. 1 kHz |
| Sensor types: | PT100, PT200, PT500, PT1000, Ni100, Ni120, Ni1000 resistance measurement (e.g. potentiometer, 10 Ω…1/4 kΩ), KTY sensors (types see documentation) |
| Connection method: | 4-wire |
| Measuring range: | -200…+850 °C (PT sensors); -60…+250 °C (Ni sensors); -200…+320 °C (high-precision) |
| Resolution: | 0.01 °C per digit |
| Conversion time: | approx. 24 ms default setting, 4…500 ms configurable |
| Temperature range: | -200…+320 °C (PT sensors) |
| Measuring current: | < 0.5 mA (load-dependent) |
| Measuring error: | < ±0.1 °C at 40 °C ambient temperature, 4-wire connection, PT100 sensors (measuring range: -200…+320 °C) and 50 Hz filter |
| Calibration certificate: | yes |
| Electrical isolation: | 500 V (E-bus/signal voltage) |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 190 mA |
| Bit width in the process image: | 1 x 32 bit RTD input |
| Special features: | integrated digital filter, limit value monitoring, variable connection technology, with calibration certificate |
| Weight: | approx. 60 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals/markings: | CE, UL, ATEX |
| Ex-Marking: | II 3 G Ex nA IIC T4 Gc |
