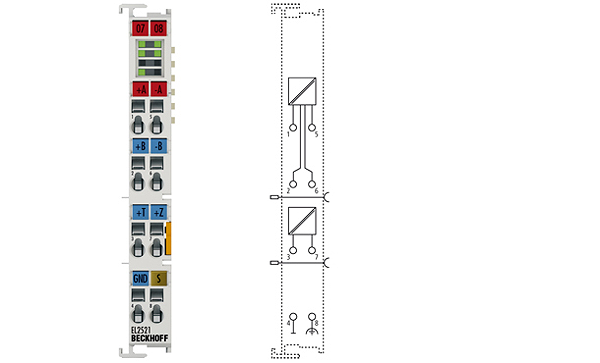

Beckhoff EL2521
EL2521 | 1-channel pulse train output terminal RS422/24 V DC
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EL2521 output terminal alters the frequency of a binary signal and (electrically isolated from the E-bus) outputs it. The frequency is preset by a 16 bit value from the automation unit. The output stage is RS422-compatible. In the version EL2521-0024 it can be driven with 24 V DC signals. The terminal indicates its signal state by means of light emitting diodes. The LEDs are driven in time with the outputs and each displays an active output.
Технические характеристики
| Connection technology: | pulse train (frequency output) |
| Number of outputs: | 1 channel (2 differential outputs A, B) |
| Number of inputs: | 2 (+T, +Z) |
| Load type: | ohmic, min. 220 Ω |
| Distributed clocks: | yes |
| Input specification: | 24 V DC |
| Output specification: | RS422, differential |
| Signal voltage: | RS422 level |
| Max. output current: | RS422 specification, 50 mA |
| Short circuit current: | short-circuit-proof |
| Base frequency: | 0…500 kHz, 50 kHz default |
| Resolution: | max. 15 bit (16 bit + sign) |
| Step size: | 10 mHz |
| Current consumption E-bus: | typ. 280 mA (load-dependent) |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Current consumption power contacts: | – |
| Bit width in the process image: | 14 byte output, 8 byte input |
| Configuration: | configuration via controller |
| Special features: | different modes, ramp function, travel distance control |
| Weight: | approx. 50 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals: | CE, UL, Ex |
