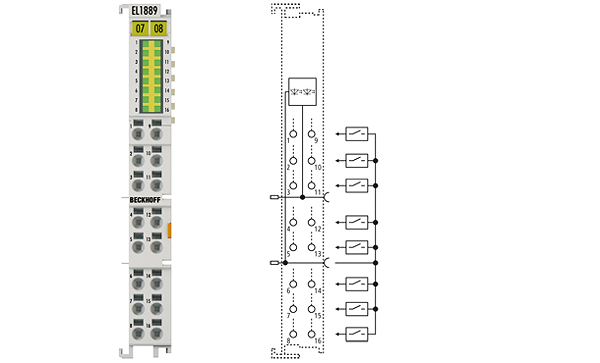

Beckhoff EL1889
EL1889 | HD EtherCAT Terminal, 16-channel digital input 24 V DC, 0 V (ground) switching
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EL1889 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation device. The EtherCAT Terminal contains 16 channels, whose signal states are displayed by LEDs. The terminal is particularly suitable for space-saving use in control cabinets. By using the single-conductor connection technique, a multi-channel sensor can be connected in the smallest space with a minimum amount of wiring. The power contacts are looped through.
Технические характеристики
| Connection technology: | 1-wire |
| Number of inputs: | 16 |
| Nominal voltage: | 24 V DC (-15 %/+20 %) |
| “0“ signal voltage: | 18…30 V |
| “1“ signal voltage: | 0…7 V |
| Input current: | typ. 3 mA |
| Input filter: | typ. 3.0 ms |
| Distributed clocks: | – |
| Current consumption power contacts: | typ. 35 mA |
| Current consumption E-bus: | typ. 110 mA |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Bit width in the process image: | 16 inputs |
| Configuration: | no address or configuration setting |
| Conductor types: | solid wire, stranded wire and ferrule |
| Conductor connection: | solid wire conductors: direct plug-in technique; stranded wire conductors and ferrules: spring actuation by screwdriver |
| Rated cross-section: | solid wire: 0.08…1.5 mm²; stranded wire: 0.25…1.5 mm²; ferrule: 0.14…0.75 mm² |
| Weight: | approx. 55 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable (see documentation) |
| Approvals: | CE, UL, Ex |
