Beckhoff EL1702

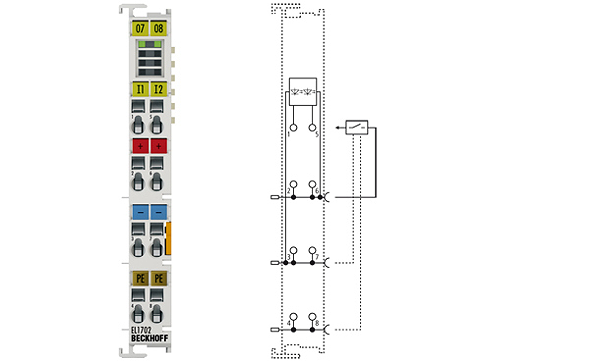

EL1702 | 2-channel digital input terminal 120…230 V AC
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EL1702 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. It is possible to connect 120 V/230 V AC actuators directly. The EtherCAT Terminal contains two channels that indicate their signal state by means of light emitting diodes.
Технические характеристики
| Connection technology: | 4-wire |
| Number of inputs: | 2 |
| Nominal voltage: | 120/230 V AC |
| “0“ signal voltage: | 0…40 V |
| “1“ signal voltage: | 79…260 V |
| Input current: | > 3 mA, typ. 6 mA |
| Input filter: | typ. 10 ms |
| Distributed clocks: | – |
| Switching times: | 10 ms |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 110 mA |
| Electrical isolation: | 500 V (E-bus/mains voltage); 3750 V AC, 1 min. |
| Bit width in the process image: | 2 inputs |
| Configuration: | no address or configuration setting |
| Weight: | approx. 60 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
